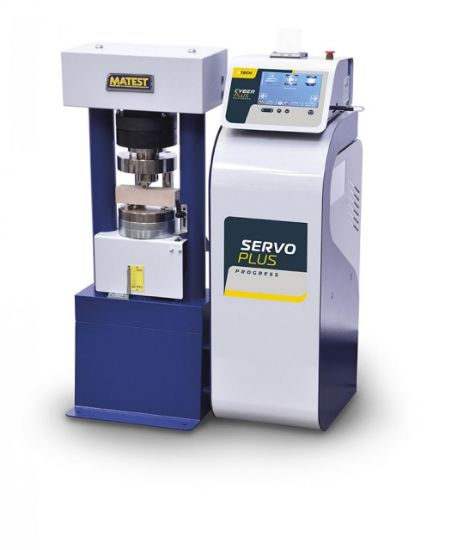

The MATEST Compression / Flexural Testing Machine with dual measuring range 250/15 kN and Servo‑Plus progress control unit is a fully automatic, motorized solution designed for precise testing of cement, mortar specimens, bricks, rocks, and refractories. Engineered with a robust two‑column high‑stiffness frame and advanced digital control, it ensures accurate, repeatable results and effortless operation in demanding lab environments.
Product Features
- Dual measuring range: 250 kN and 15 kN for comprehensive compression and flexural testing
- Fully automatic motorized operation with Servo‑Plus progress control unit for precise control
- Two high‑accuracy pressure transducers granting Class 1 accuracy starting from 10% of the scale
- Calibration accuracy: Class 1 (maximum error ±1%) from 10% of full scale
- Resolution: 0.01 kN for fine measurement detail
- Max. vertical daylight between platens: 185 mm to handle various specimen sizes
- Horizontal daylight between columns: 175 mm for flexible placement
- Platens diameter: 153 mm ensuring uniform load application
- Ram travel approximately 45 mm for effective compression and flexural testing
- Supplied complete with lower compression platen and coupling piece for quick, secure setup
- Power supply: 230V, 1 phase, 50Hz, 750W motorized model
- Machine weight: 310–340 kg providing operational stability
Benefits
- Fully automatic testing increases efficiency and reduces operator workload
- Dual range design enables both compression and flexural tests with one machine
- High‑stiffness frame and advanced sensors deliver repeatable, high‑precision results
- Fine resolution and Class 1 calibration accuracy ensure reliable data for quality assurance
- Robust construction and included components allow quick installation and minimal downtime
Why Choose the MATEST Press Dual Range 250/15 kN Servo‑Plus?
Perfect for labs needing reliable, fully automated compression and flexural testing, the MATEST Press Dual Range 250/15 kN with Servo‑Plus control combines precision, speed, and durability. Its dual range capability and advanced motorized system deliver consistent, high‑quality results for cement, mortar, and refractory materials—making it an essential tool for modern materials testing laboratories.
