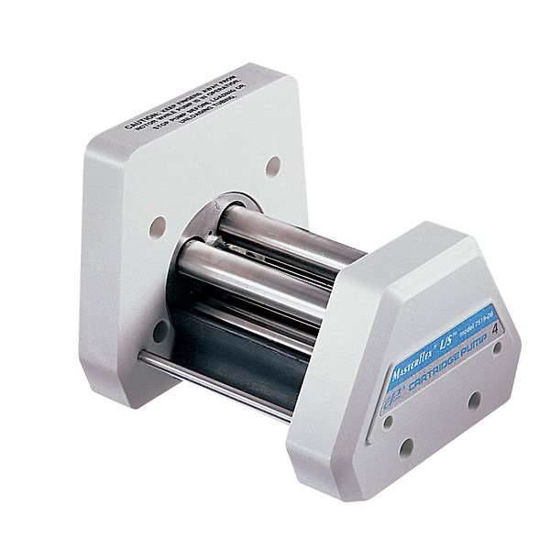

Masterflex L/S 8-channel, 4-roller cartridge pump head._1098907
Representative image only

Masterflex L/S 8-channel, 4-roller cartridge pump head.

$2,134.88

$2,651.00
20% Discount
The price is inclusive of GST
DescriptionL/S 8-channel, 4-roller cartridge pump head.
Gear ratio1:1
Height (InchShort)4
Height (mm)102
Housing MaterialPolysulfone (PSF)
Length (InchShort)5.75
Length (mm)14.6
Max Flow Rate Per Channel (mLmin)1400
Max. Number of Cartridges (Large)4
Max. Number of Cartridges (Small)8
Min Flow Rate Per Channel (mLmin)0.0015
Number of Channels8
OcclusionTangential, adjustable
Open-Head SensorNo
Optimum rpm range (rpm)0.02 to 600
Pump SeriesL/S
RollersFour
Rotor materialStainless Steel
Suction Lift (FeetShort)29
Suction lift (m)8.8
Tubing RetentionStopped Tubing or Manual
Tubing sizes acceptedMicrobore two-stop tubing sets, L/S 13^, L/S 14^, L/S 16^, L/S 25^, L/S 17* Footnotes: ^Silicone, Tygon, C-FLEX, Puri-Flex, PharMed BPT, and Norprene; *Silicone and C-FLEX® only
Volume Per Revolution With L/S 13 Tubing (mL)0.06
Volume Per Revolution With L/S 14 Tubing (mL)0.21
Volume Per Revolution With L/S 16 Tubing (mL)0.8
Volume Per Revolution With L/S 17 Tubing (mL)2.8
Volume Per Revolution With L/S 25 Tubing (mL)1.7
Width (InchShort)4.375
Width (mm)111
Instruction Manual
View Virtual Catalog - English - gy44-0694.pdf
Overview
  • Synchronous, multichannel flow from up to 8 channels
  • Flow rates: 0.074 to 1400 mL/min
  • Number of cartridges: 1 to 8 small, 1 to 4 large. Mix large and small cartridges—one large cartridge occupies the same space as two small cartridges
  • Gear ratio: 1:1
  • Occlusion: tangential, adjustable
  • Drive requirements: 1/10-hp min, 600 rpm max
  • Materials of construction: stainless-steel rotor and bearings, polysulfone ends
