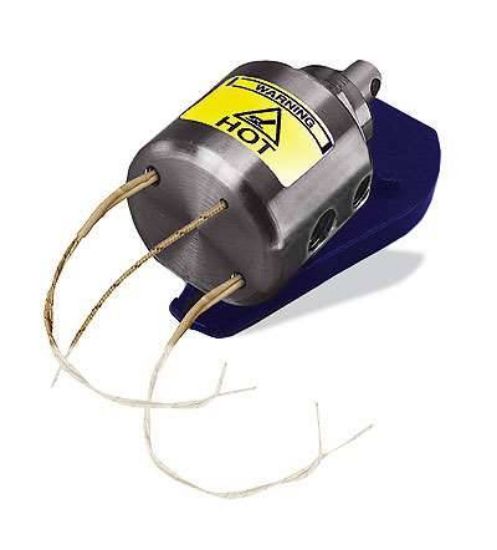

The Masterflex FMI Q1CSCWT Temperature Controlled Pump Head is designed for applications that require precise thermal control while pumping viscous solutions such as waxes, pastes, or cosmetics. With an operating temperature up to 350°F and pressure capability up to 100 psig, this pump head features durable wetted materials—ceramic, PTFE, and 316 stainless steel.
Product Features
- Temperature-controlled pump head for viscous fluids and thermal-sensitive processes
- Operating temperature up to 350°F
- Handles pressures up to 100 psig
- Wetted materials: ceramic, PTFE, and 316 stainless steel
- Suitable for applications to maintain process fluid temperatures or pump viscous solutions (such as waxes, pastes or cosmetics)
- Run wash fluids, gases, or steam through gland ports to provide a barrier between process fluids and the seal area (atmosphere)
- Barrier maintains required temperatures and pressures for slurries, particulates, crystal formers, and anaerobics
- Control and monitor temperature with a temperature panel meter (order power cord also), two cartridge heaters, and a thermocouple (order separately under accessories)
- Drive required for operation is sold separately under accessories
Benefits
- Accurate thermal management ensures fluid consistency and process reliability
- Ideal for high-viscosity and temperature-sensitive materials
- Resistant to chemicals and mechanical wear
- Barrier port design enhances seal life and system cleanliness
- Modular accessory support allows full control over pump head temperature
Why Choose the Masterflex FMI Q1CSCWT Temperature Controlled Pump Head, 0 to 576 mL/min at 1800 rpm?
This rugged and efficient pump head is the go-to solution for applications requiring both temperature precision and the ability to handle highly viscous or reactive materials, providing reliable performance in demanding environments.
