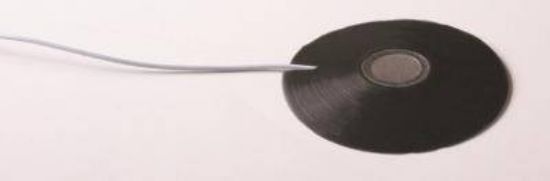

Representative image only

Model:130B40 - Low-profile surface pressure microphone and preamp, prepolarized

$2,725.80

The price is inclusive of GST
ICP® ELECTRET SURFACE MICROPHONE
Low-profile surface pressure microphone and preamp, prepolarized


Product Specifications
 ENGLISHSI
Performance
    Frequency Response CharacteristicPressurePressure
    Frequency Response (+/-1 dB)100 to 3000 Hz100 to 3000 Hz
    Frequency Response (+/-3 dB)20 to 10000 Hz20 to 10000 Hz
    Frequency Response (+/-6 dB)20 to 20000 Hz20 to 20000 Hz
    Sensitivity (@ 250 Hz)8.5 mV/Pa8.5 mV/Pa
    Sensitivity (+/-3 dB) (@ 250 Hz)-41.4 dB re 1 V/Pa-41.4 dB re 1 V/Pa
    Inherent Noise<32 db(a)="" re="" 20=""><32 db(a)="" re="" 20="">
    Dynamic Range (High)150 dB re 20 µPa150 dB re 20 µPa[1][2]
    Dynamic Range(3% Distortion Limit)>142 dB re 20 µPa>142 dB re 20 µPa
    TEDS Compliant (Per IEEE 1451.4)YesYes
Environmental
    Temperature Range (Operating)-40 to +176 °F-40 to +80 °C[3]
Electrical
    Excitation Voltage18 to 30 VDC18 to 30 VDC
    Constant Current Excitation2 to 20 mA2 to 20 mA
    Output Bias Voltage9 to 14 VDC9 to 14 VDC
    Output Impedance≤50 Ohm≤50 Ohm
Physical
    Housing MaterialStainless SteelStainless Steel
    Electrical ConnectorIntegral CableIntegral Cable
    Cable Type030 Coaxial030 Coaxial
    Cable Length5 ft1.5 m
    Cable Termination10-32 Coaxial Plug10-32 Coaxial Plug
    Size - Diameter (Without fairing)0.52 in13.2 mm
    Size - Diameter (With fairing)1.62 in41.0 mm
    Size - Height0.126 in3.20 mm
    Weight0.3 oz7 gm[2]
    Weight (without cable)0.03 oz0.8 gm[2]

All specifications are at room temperature unless otherwise specified.

CE
Product Notes
[1] Max without clipping.
[2] Typical.
[3] Sensitivity can change with significant variations in temperature.
[4] See PCB Declaration of Conformance PS023 for details.
Accessories:
Supplied
070A02Scope input adaptor (micro 10-32 jack to BNC plug)(1)
100-11180-10IPA Wipe(2)
54924-01Double Sided Base Adhesive Pad(5)
54925-01Single Sided Top Adhesive Pad(5)
55739-01Silicone Fairing(1)
ACS-21Calibration of Electret Microphone(1)
Optional Versions:
No optional versions
