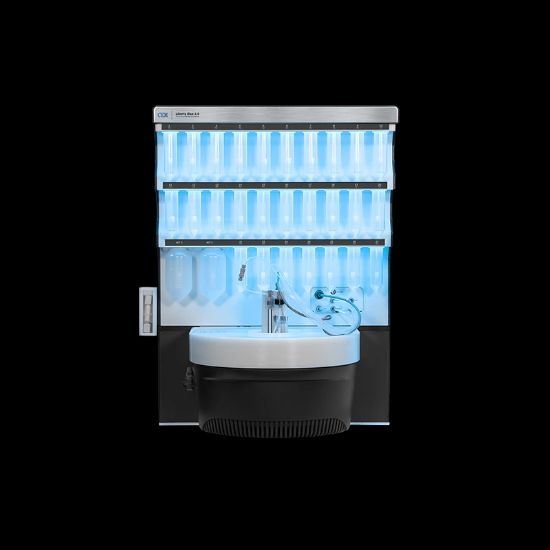

The CEM Liberty Blue™ 2.0 System is an advanced automated microwave peptide synthesizer designed for Fmoc solid phase peptide synthesis at scales from 0.005 to 5 mmol. Utilizing a Discover single-mode microwave reactor with self-tuning capability and continuous power delivery from 0 to 300 W in 1 W increments, the system supports reaction vessels ranging from 30 to 125 mL. Featuring 20 standard amino acid ports, 7 unusual amino acid ports, and 4 external reagent ports, all reagent deliveries are precisely controlled by nitrogen pressure. The innovative Flex-Add™ technology ensures accurate amino acid and activation reagent delivery. Additionally, the Liberty Blue 2.0 incorporates a unique headspace cleaning process that enhances reaction vessel cleanliness and peptide purity.
Product Features
- Supports Fmoc solid phase peptide synthesis from 0.005 to 5 mmol scale
- 30–125 mL vessel compatibility with Discover single-mode microwave reactor
- Continuous microwave power delivery from 0–300 W with 1 W increments and self-tuning
- 20 standard amino acid ports, 7 unusual amino acid ports, 4 external reagent ports
- Flex-Add™ nitrogen pressure delivery for precise reagent control
- Innovative headspace cleaning process for cleaner vessels and improved peptide purity
- UV Monitor Option for real-time deprotection monitoring and adaptive synthesis control
- HT4 Option enabling sequential synthesis of up to 4 peptides with automated resin transfer
- Camera Option to visually monitor reactions inside the microwave cavity
What's Included
- Liberty Blue 2.0 System with integrated Discover microwave reactor
- UV Monitor Option including module, tubing, communication cable, and software
- HT4 Option with a module containing 4 resin positions for sequential peptide synthesis
- Camera Option for in-cavity reaction visualization
- Appropriate power cord(s) for 240 V operation
Benefits
- Precise and reproducible peptide synthesis accelerated by microwave technology
- Real-time UV monitoring and adaptive feedback improve synthesis outcomes
- Automated multi-peptide synthesis boosts laboratory throughput
- Enhanced vessel cleanliness leads to higher peptide purity
- Visual reaction monitoring increases process transparency and control
Why Choose the CEM Liberty Blue 2.0?
The CEM Liberty Blue 2.0 offers a comprehensive, state-of-the-art solution for peptide synthesis combining advanced microwave technology, precise reagent delivery, and innovative monitoring and automation options. It is the ideal system for research and production labs aiming for unmatched purity, efficiency, and versatility in peptide synthesis.
