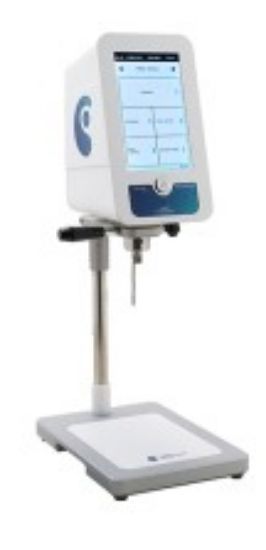

The Lamy Rheology RM 100 PLUS Viscometer with MS-R1 to R5 spindle set in case and standard stand offers high-precision viscosity measurements for quality control and research applications. With an intuitive interface and integrated temperature probe, it allows direct curve visualization, programmable methods, and USB data export. Compact, portable, and easy to operate, it’s an ideal choice for labs requiring flexibility and accuracy.
Product Features
- Springless rotating viscometer with 7" colour touchscreen display
- Unlimited rotational speeds between 0.3 and 1500 rpm
- Standard version torque: 0.05 to 30 mNm
- Integrated temperature probe covering -50 °C to +300 °C
- Accuracy: ±1% of full scale
- Repeatability: ±0.2%
- Display shows viscosity, speed, torque, shear stress, time, and temperature
- PC connection via RS232/USB
- Printer connection via USB port
- Compatible with MS-R1 to R5 spindles (included in case)
- Real-time curve visualization and analysis
- Programmable testing methods and result memory
- USB data recording and export functionality
- Standard stand included for secure sample handling
- Compatible with RheoTex software for advanced data analysis
Methods Compliance
ASTM: D115; D789; D1076; D1084; D1337; D1338; D1417; D1439; D1824; D2196; D2243; D2364; D2556; D3288; D3468; D3716; D3730; D3794; D4016; D4143; D4878; D4889; D5324; D5400; D6279; D6577; D7394; D8020; E2975; F1607; BS 5350; DIN 2555; 3219; 52007-1; 53019-1; 54453; EN 302-7; 2555; 3219; 10301; 12092; 12802; 15425; 15564; IOCCC 2000; ISO 1652; 2555; 2884-2; 3219; 10364-12.
Optional Items
- Carrying case
- RheoTex software
- Rack stand (enables single hand vertical movement of viscometer)
Compatible Accessories (must be purchased separately)
- MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS HT, MS ULV, MS SV, MS CP
Compatible Temperature Control Units (must be purchased separately)
- EVA DIN, EVA MS-R, EVA LR-BV, RT1, RT3, CP1

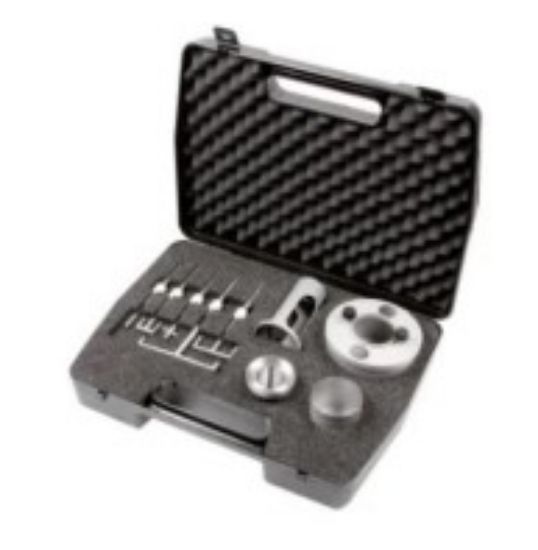

The MS-R1 to R5 in a Case Includes
- Spindles 1 thru 5
- ST-R centring tool
- 1 of each MB-2 and MB-3 Cups
Benefits
- Accurate, repeatable viscosity measurements across multiple samples
- Quick method setup with pre-programmed sequences
- Easy transport with spindle case and compact footprint
- USB and software integration enhance workflow efficiency
- Perfect for both field and benchtop laboratory environments
Why Choose the Lamy Rheology RM 100 PLUS?
Engineered for precision and ease of use, the RM 100 PLUS Viscometer is ideal for laboratories requiring accurate viscosity measurement with method flexibility. The included MS-R1 to R5 spindle set, standard stand, and portable design make it a complete solution for QC and R&D needs.
