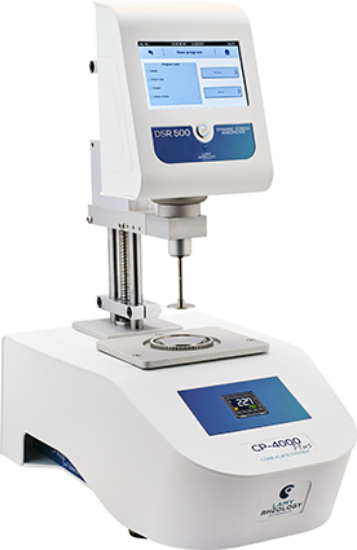

The Lamy Rheology DSR 500 CP PLUS Rheometer with Peltier air temperature control (0 to +150 °C) is designed to meet demanding rheological measurement needs. Featuring a motorized lift, built-in temperature control unit, and all essential functions, this cone-plate rheometer guarantees high performance even without a computer.
Product Features
- Allows full standalone operation without computer
- 7'' colour touchscreen display for intuitive control
- Unlimited rotating speeds between 0.3 and 1500 rpm
- Torque range: 0.05 to 30 mNm
- Temperature range: 0 to +150 °C (Peltier air-air)
- Accuracy: ±1% of full scale; Repeatability: ±0.2%
- Displays viscosity, speed, torque, shear stress, shear rate, time, and temperature
- PC and printer connectivity via RS232 and USB
Note: Allows temperature setting by RheoTex software or measuring head. Spindles must be purchased separately.
Compatible Accessories
- MS CP
Optional Items
- RheoTex software plus license
Benefits
- Automatic lift for gap
- Quick attachment with AC265 coupling
- Shear rate and shear stress controlled
- Direct curve on display
- Ramp programming
- Direct analysis with regressions
- Direct control of temperature unit
- Huge viscosity range
- Programming and recording method
- Direct measure with time to stop
- User and locked mode
- Data recording and USB transfer
- Torque gage on display
- Integrated temperature probe
- Printer connection
- Compatible with RheoTex software
- Memorize flow ramps and calculate rheological parameters directly
- Supports Newton, Bingham, Casson, and Ostwald models
- Edit and print measurement reports directly via USB-connected printer
- Complies with ASTM, BS, DIN, and ISO methods
Why Choose the Lamy Rheology DSR 500 CP PLUS Rheometer?
With advanced temperature control and comprehensive measurement features, this rheometer offers reliable, precise performance for laboratories requiring detailed rheological analysis. Its motorized lift and user-friendly interface ensure efficient workflows, while compatibility with RheoTex software enhances data management and reporting.
