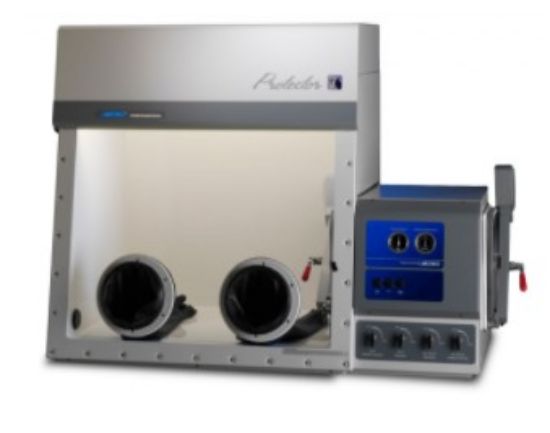

The Labconco Protector Fiberglass Controlled Atmosphere Glove Box offers a leak-tight environment for handling contamination-sensitive materials under vacuum or inert atmospheres. Fiberglass-lined models are tested to maintain oxygen levels as low as 0.4 ppm and moisture levels as low as 2 ppm, ensuring superior control for sensitive laboratory processes.
Product Features
- Factory leak-tested with helium mass spectrometer at 5 inches water gauge; no detectable leaks >1 x 10-6 ml/sec
- Exceeds Class I atmosphere containment conditions for oxygen permeation <1.67 ppm/min per ISO 10648-2 test method
- Oxygen permeation <0.3 ppm/min (fiberglass-lined) and <0.15 ppm/min (stainless steel-lined) per ISO 10648-2
- Four manual valves (two main chamber, two transfer chamber) with 3/8” compression fittings and hose barbs for evacuation, filling, and control
- Rear-mounted low-profile stainless steel pressure relief bubbler at ±6 inches water gauge
- Two rear-mounted 3/4” OD compression fittings for easy connection to AtmosPure Re-Gen Gas Purifier or accessory drying trains
- Large 36” w x 27.6” h laminated safety glass viewing window for maximum visibility
- Space-saving upward pivoting, counterbalanced inner and outer transfer chamber doors with quick-latches
- Interior right-hand side wall-mounted electrical duplex receptacle (10 amp max) and left-hand side pass-through plug for optional accessories
- Pair of neoprene gloves (0.015” thick, 30” long, size 9 ¾) mounted on double-grooved epoxy-coated aluminum glove ports
- Switches for light, blower, and electrical duplex
- Two 25-watt fluorescent lights
- Durable dry-powder epoxy-coated steel exterior panels (18 and 20 gauge)
Note: All Protector Controlled Atmosphere Glove Boxes are compatible with the AtmosPure Re-Gen Gas Purifier accessory, capable of removing up to five liters of oxygen (13,500 ppm) and 660 grams of moisture (18 million ppm) at standard temperature and pressure (STP).
Options
- Chemical resistant one-piece molded fiberglass liner or type 304 stainless steel liner
- Clear acrylic inner and outer transfer chamber doors (fiberglass-lined models)
- Type 304 stainless steel inner and outer transfer chamber doors and front panel (stainless steel-lined models)
- Main chamber pressure analog gauge (-5 to +5 inches water gauge)
- Transfer chamber pressure analog gauge (0 to 29.5 inches mercury)
- Automatic Pressure Controller with up to 499 evacuation/filling cycles for main and transfer chambers (auto pressure control models)
- Audible alarm for pressure/vacuum limits
- LCD pressure display in inches water, mercury, and mBar (auto pressure control models)
- Three-position foot pedal for gas control (increase/fill, off, evacuate/decrease gas)
- Input/output port for AtmosPure Re-Gen Gas Purifier
Required Accessories
- Adjustable height base stands
- Vacuum source
- Inert gas for filling
Optional Accessories
- AtmosPure Re-Gen Gas Purifier
Benefits
- Maintains ultra-low oxygen and moisture levels for sensitive sample protection.
- Robust fiberglass construction provides chemical resistance and durability.
- Automatic pressure control enhances safety and process reliability.
- Large viewing window and ergonomic glove ports improve usability and operator comfort.
- Versatile options adapt to a wide range of laboratory applications.
Why Choose the Labconco Protector Fiberglass Controlled Atmosphere Glove Box?
Labconco’s Protector Glove Box delivers reliable, contamination-free environments with advanced leak-tight design and precise atmosphere control. Engineered to meet the needs of demanding laboratories, it offers trusted performance, durability, and user-friendly features for critical inert atmosphere work.
