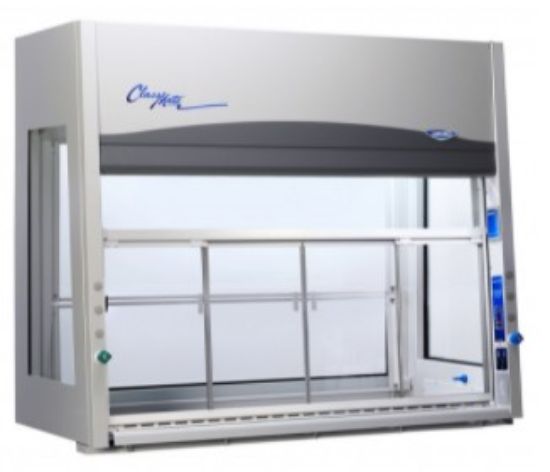

The Labconco Protector ClassMate Hood, 6 ft, Combination Sash, 208-230 V (160605120) is a benchtop laboratory fume hood designed for instructional laboratories. It features clear back and side panels, a tall front viewing area, combination horizontal-sliding/vertical-rising sashes, by-pass airflow design, LED lighting and a 208-230 V, 50/60 Hz electrical configuration.
Key Features
- Brand: Labconco
- Model / Part Number: 160605120
- Product Type: Protector ClassMate laboratory hood
- Application: Instructional laboratories, chemistry demonstrations and student observation
- Nominal Width: 6 ft
- Sash Type: Combination horizontal-sliding/vertical-rising sash
- Airflow Design: High-performance by-pass airflow design
- Lighting: Pre-wired LED lighting with light switch
- Frame: Glacier white powder-coated steel frame
- Glass Panels: Clear 1/4 in tempered safety glass sides, back and removable baffle
- Viewing Panel: 5° angled, 1/4 in tempered safety glass stationary viewing panel
- Sash Opening: Sash stop at 14 in from work surface; fully open sash is 28 in from work surface
- Exhaust Connection: Powder-coated stainless steel 12.81 in ID exhaust connection
- Electrical: 208-230 V, 50/60 Hz, 5 A
- Dimensions: 72.0 x 32.7 x 59.0 in / 182.9 x 81.9 x 149.9 cm
- Required Accessories: Remote blower, ductwork, work surface and base cabinet or stand, not included
Note: Remote blower, ductwork, work surface and base cabinet or stand are required accessories and must be ordered separately. Confirm the correct blower, ducting and installation requirements before ordering.
Benefits
- Supports instructional laboratory layouts with clear back and side panels for improved visibility.
- Allows operators to work with the sash half open either horizontally or vertically.
- Helps maintain safe airflow through a high-performance by-pass hood design with baffle and air foil.
- Improves demonstration visibility with a tall front viewing area and clear glass construction.
- Supports energy-conscious operation while maintaining fume hood performance.
- Provides service access through removable front panels, side panels and interior cover plates.
Why Choose the Labconco Protector ClassMate Hood, 6 ft, Combination Sash, 208-230 V (160605120)?
The Labconco Protector ClassMate Hood, 6 ft, Combination Sash, 208-230 V (160605120) combines clear visibility, high-performance by-pass airflow and flexible sash operation for instructional laboratory environments. John Morris Group supplies Labconco laboratory ventilation solutions for Australian laboratories requiring reliable product selection, technical support and local procurement assistance.
