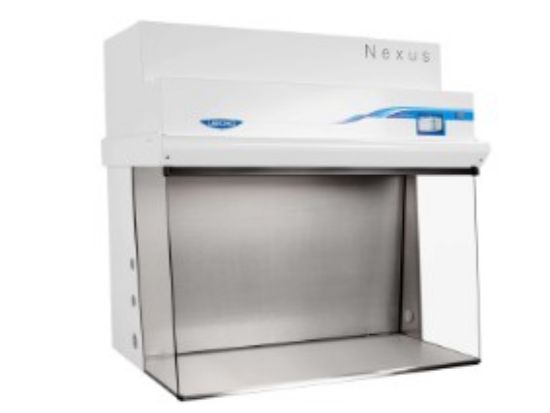

The Labconco Nexus Horizontal Clean Bench is engineered for critical, non-hazardous applications demanding ISO Class 4 clean airflow. Featuring a 21" deep work area and an intuitive 5” touchscreen, it ensures precise, energy-efficient operation powered by an ECM motor with Constant Airflow Profile (CAP™) technology. The sleek design, tempered safety glass, and stainless steel side walls make cleaning effortless, while advanced logging and remote connectivity support compliance and traceability in modern labs.
Product Features
- Fully scannable 99.99+% supply HEPA filter, optional 99.999% efficient ULPA filter
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System with full color, 5" touchscreen featuring:
- Simplified home screen for easy start-up and shut-down
- Eco mode for blower idle
- Detailed operational, maintenance, and certification logs
- Numeric and visual HEPA Filter Life graphic
- Optional password security lock
- Status line with alerts for diminishing filter life
- Interval/elapsed experiment timer
- UV light timer (on UV models)
- 8 language options
- Glass side panels
- Spill-Stopper design protects HEPA filter
- USB port for data export
- Remote Ethernet connectivity
- Prefilters to extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass, stainless steel side wall, utility pass-through port, and two service fixture punch-outs
- Electrical outlets: ceiling mount, flat stainless steel cover
- 115V GFCI double receptacle (max draw 5A); 230V single receptacle (max draw 3A)
- 30.2" interior height
- Optic White epoxy-coated steel exterior
- Nominal face velocity: 0.43 m/s
- 3 m power cord with plug
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Models Conform to the Following Standards
- ISO Class 4 (Grade A) per ISO 14644-1 & 2
- UL Standard 61010-1
- CAN/CSA 22.2 No. 61010-1
- CE and UKCA Mark
Options
- Widths: 3', 4', 5', 6'
- Interior depth: 21" or 26"
- Standard interior: epoxy coated steel & non-shedding PVC work surface
- Stainless steel interior & work surface
- 254 nm UV lamp with interlocked UV protection screen
- Unassembled epoxy-coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- CE/UKCA Conformity marking
- CAN/CSA 22.2 No. 61010-1
- ISO Class 4 (Grade A) conditions per ISO 14644-1 & 2
Benefits
- Quiet, energy-efficient operation with ECM motor and CAP™ airflow
- Maintenance-friendly design with prefilters and filter life indicators
- Detailed logging and remote access for compliance management
- Space-saving 21" deep work area with ISO Class 4 protection
- Easy-to-clean tempered safety glass and stainless steel
Why Choose the Labconco 4' Nexus Horizontal Clean Bench, 21" Deep Work Area, Laminar ISO Class 4 Airflow, Intelligent OS with 5” Touchscreen, ECM Motor with CAP Technology?
Combining ISO Class 4 performance, intuitive touchscreen control, and durable design, the Labconco Nexus Horizontal Clean Bench offers quiet, reliable protection for sensitive, non-hazardous samples—ideal for life sciences, pharmaceutical R&D, and compounding applications.
