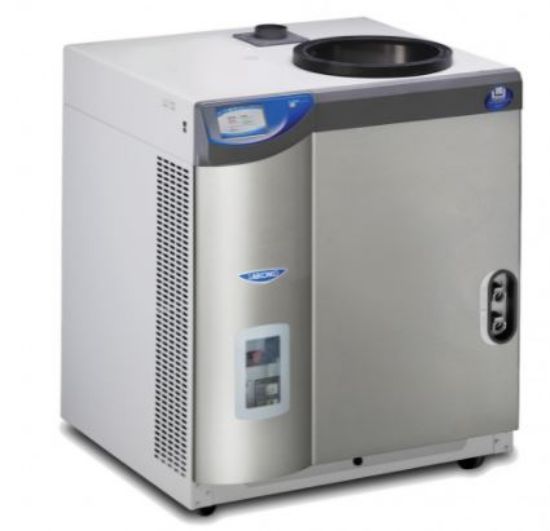

The Labconco FreeZone 6L -84°C Console Freeze Dryer with stainless steel coil, collector, built-in purge valve, and mini vacuum drying chamber is engineered for lyophilizing moderate to large sample loads or multiple small batches. With ultra-low temperature capability, advanced Lyo-Works OS, and robust stainless steel construction, it ensures consistent, reliable freeze-drying even for low eutectic point samples like acetonitrile. Ideal for research and production labs demanding flexibility and precision.
Product Features
- Upright stainless steel collector coil holds up to 6L of ice before defrosting; stainless steel collector lid (3/4" thick) with neoprene gasket
- Console cabinet with interior space for vacuum pump (sold separately) and two-piece removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- Full-color, 5" capacitive touch screen with Lyo-Works OS:
- Real-time display of collector temperature, vacuum level, and optional End-Zone end point detection
- Start-up mode for automatic/manual collector cool-down and vacuum pull-down
- Operating mode (standby or run)
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
- Data logging in table or chart format, exportable via USB or Ethernet
- Settings: language, time, time zone, temperature units (°C/°F), and vacuum units (mBar, Torr, Pa)
- Programmable alerts sent via Ethernet to user emails
- Display settings: brightness, touch sounds (on/off), screen timeout (on/off)
- Maintenance alerts: vacuum pump oil change, refrigeration cleaning, total operating hours, line voltage offset
- Level-specific security lock-out prevents unauthorized program changes
- Hot gas defrost with auto shut-off at +60°C
- On/standby switch
- Moisture sensor prevents refrigeration or vacuum start-up if moisture is detected in the drain line
- Vacuum control valve maintains vacuum level set point
- Vacuum break valve automatically bleeds air into the system when power is cut; auto restart if outage is under ~5 minutes
- Side-mounted USB port and rear-mounted Ethernet connection
- Front-mounted quick-disconnect drain hose fitting and side-mounted lanyard with hose connector; includes 18" of 1/4" ID silicone tubing and clamp
- Internal electrical receptacle for vacuum pump; 3-wire electrical cord with plug
- 3/4" OD vacuum connection; includes 36" of 3/4" ID vacuum hose and two clamps
Note: Vacuum pump, drying accessory, and freeze dry glassware (if not bulk freeze drying) are required but not included.
Options Include
- PTFE-coated collector coil and chamber for processing corrosive compounds
Required Accessories (Not Included)
- Vacuum pump (≥98L/min displacement, 0.002mBar ultimate pressure, compatible with 3/4" ID vacuum hose)
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- -84 °C collector ideal for low eutectic point solvents like acetonitrile
- Built-in purge valve and mini chamber expand functionality and protect the system
- Robust stainless steel design for longevity and corrosion resistance
- Advanced touchscreen interface simplifies control and monitoring
- Compact console design saves lab space and keeps accessories organized
- Automatic restart after short power interruptions maintains continuity
Why Choose the FreeZone 6L -84°C Console Freeze Dryer with Stainless Steel Coil and Collector, Purge Valve & Mini Chamber?
This premium freeze dryer offers precision, durability, and built-in flexibility with a purge valve and mini chamber. Designed for busy research and production labs, it ensures consistent performance and easy operation for demanding freeze-drying applications.
