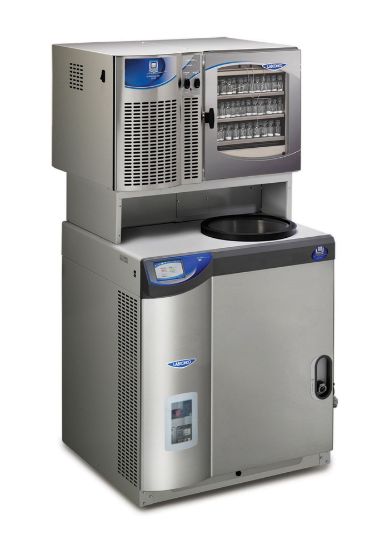

The Labconco FreeZone 6 Liter -50°â€¯C Console Freeze Dryer with Stoppering Tray Dryer, stainless steel coil and collector, and purge valve is engineered to efficiently lyophilize moderate to large sample loads while stoppering vials or serum bottles under vacuum. Combining robust construction, advanced controls, and a compact console design, this freeze dryer delivers reliable performance in demanding lab environments.
Product Features
- Upright stainless steel collector coil holds 6L of ice before defrosting; acrylic collector lid, 3/4" thick, with neoprene gasket
- Console cabinet with interior space for vacuum pump (sold separately) and two-piece removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- FreeZone Stoppering Tray Dryer with three 16.5" x 12" processing shelves
- Full color 5" capacitive touch screen with Lyo-Works™ OS for real-time monitoring
- Start-up and operating modes, vacuum set point, alerts, diagnostics, defrost control, and optional drying accessory parameters
- Data logging in table or chart format; export via USB or Ethernet
- Customizable settings: language, time zone, temperature units (°C/°F), vacuum units (mBar, Torr, Pa)
- Programmable email alerts and adjustable display settings
- Maintenance alerts for vacuum pump oil change, refrigeration cleaning, and operating hours
- Level-specific security lock-out to protect programs and parameters
- Hot gas defrost with auto shut off at +60°â€¯C (+140°â€¯F)
- Moisture sensor prevents vacuum or refrigeration start-up if moisture is detected in drain line
- Vacuum control valve maintains set point; vacuum break valve protects system during power interruptions
- Side USB port, rear Ethernet, quick-disconnect drain hose, and internal vacuum pump receptacle
- Includes 36" of 3/4" ID vacuum hose with two clamps and 18" of 1/4" ID silicone tubing with clamp
Note: Vacuum pump and freeze dry glassware (if not bulk freeze drying) are required but not included.
Options Include
- PTFE-coated collector coil and chamber for processing corrosive compounds
- Purge valve for isolating the vacuum pump from the freeze dryer
Required Accessories (Not Included)
- Vacuum pump with at least 163 L/min displacement and 0.002 mBar ultimate pressure
- Freeze dry glassware if not performing bulk freeze drying
Benefits
- Reliable stoppering and lyophilization of large sample volumes under vacuum
- Intuitive Lyo-Works™ touch screen simplifies operation and monitoring
- Stainless steel collector and robust build for long service life
- Flexible data logging and customizable alerts enhance workflow and compliance
- Compact, space-saving console ideal for busy lab environments
- Designed to handle a wide range of applications, from research to production
Why Choose the Labconco FreeZone 6L Console Freeze Dryer?
This system combines precision, durability, and advanced control to meet the needs of labs requiring reliable freeze drying with stoppering. Ideal for pharmaceuticals, biological research, and chemical applications where quality and consistency matter.
