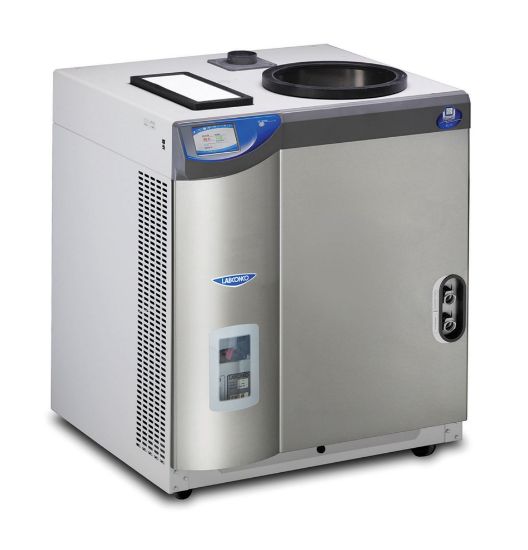

The Labconco FreeZone 6L -50°C Console Freeze Dryer with PTFE-coated coil and collector is built to handle moderate to large sample loads or multiple small containers, especially when working with corrosive compounds. Its robust console design includes interior space for a vacuum pump, front viewing window, and supports optional large tray dryers. With advanced Lyo-Works OS and real-time digital monitoring, it ensures consistent and efficient lyophilization in demanding laboratory environments.
Product Features
- Upright PTFE-coated collector coil capable of holding 6L of ice before defrosting
- Acrylic collector lid, 3/4" thick, with neoprene gasket
- Console cabinet with interior space for vacuum pump (sold separately) and two-piece, removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- Full-color 5" capacitive touch screen with Lyo-Works OS featuring:
- Real-time display of collector temperature, vacuum level, and optional End-Zone end point detection
- Start-up mode for collector cool-down and vacuum pull-down (automatic or manual)
- Operating modes: standby or run
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and accessory parameters
- Data logging (table or chart), exportable via USB or Ethernet
- Settings: language, time, time zone, temperature (°C/°F), and vacuum units (mBar, Torr, Pa)
- Programmable alerts sent via Ethernet to user email
- Display settings: brightness, touch sounds, and screen timeout
- Maintenance alerts for vacuum pump oil change, refrigeration cleaning, total hours, line voltage offset
- Level-specific security lock-out prevents unauthorized changes
- Hot gas defrost with auto shut off at +60°C
- On/standby switch for quick control
- Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
- Vacuum control valve maintains set vacuum level
- Vacuum break valve bleeds air into the system when power is shut off; auto restart if power returns in ~5 minutes
- Side-mounted USB port and rear-mounted Ethernet for data export and alerts
- Front quick-disconnect drain hose fitting and side lanyard with hose connector
- Includes 18" of 1/4" ID silicone tubing and clamp
- Internal electrical receptacle for vacuum pump
- 3-wire electrical cord with plug
- 3/4" OD vacuum connection, 36" of 3/4" ID vacuum hose and two clamps
Note: Vacuum pump, drying accessory, and freeze dry glassware (if not bulk freeze drying) are required but not included.
Options Include
- Purge valve to isolate the vacuum pump from the freeze dryer
- Built-in stainless steel mini vacuum drying chamber with 50W heater, microprocessor control to +60°C, 3/4" acrylic lid and neoprene gasket (chamber not cooled)
- Built-in shell freezer with stainless steel bath, 1/2 hp HCFC/CFC-free refrigeration cooling to -40°C, HDPE lid, neoprene gasket, front quick-disconnect drain, and 18" of 1/4" ID silicone tubing with clamp
Required Accessories (Not Included)
- Vacuum pump with ≥98L/min displacement, 0.002mBar ultimate pressure, fitting for 3/4" ID vacuum hose
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- Ideal for moderate to large volumes and corrosive samples
- Advanced Lyo-Works OS provides real-time monitoring and detailed logging
- Durable PTFE coating protects collector and chamber from corrosive compounds
- Compact console design saves space and supports external accessories
- Safety features protect your samples and equipment during power interruptions
- Programmable alerts and lock-out features ensure process repeatability and reliability
Why Choose the FreeZone 6L -50°C Console Freeze Dryer with PTFE Coil and Collector?
Designed for reliable -50°C performance, the freeze dryer controls delivers consistent results, superior protection against corrosives, and intuitive operation, making it the ideal choice for research, production, and QC labs handling sensitive or harsh samples.
