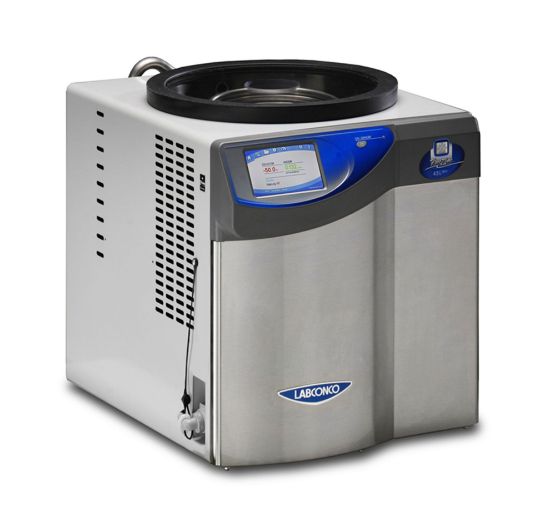

The Labconco FreeZone 4.5 Liter Benchtop Freeze Dryer is engineered for lyophilizing light to moderate sample loads, combining a compact footprint with advanced features for modern labs. It features an upright stainless steel collector coil holding 4.5 liters of ice before defrosting and a robust refrigeration system cooling to -50° C, suitable for aqueous samples. The intuitive Lyo-Works OS, displayed on a 5" full-color capacitive touch screen, provides real-time monitoring of collector temperature, vacuum level, and optional End-Zone detection, making freeze drying processes easier and more reliable.
Product Features
- Upright stainless steel collector coil holds 4.5L of ice before defrosting
- PTFE-coated collector coil and chamber for corrosive compound processing
- Acrylic collector lid, 3/4" thick, with neoprene gasket and 3" diameter port for drying accessories
- Compact benchtop design with a small footprint
- Full-color, 5" capacitive touch screen with Lyo-Works OS
- Real-time display of collector temperature, vacuum level, and optional End-Zone detection
- Start-up mode for collector cool-down and vacuum pull-down (automatic/manual)
- Operating mode options: standby or run
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and accessory parameters
- Data logging exportable via USB or Ethernet in table or chart format
- Settings for language, time, time zone, temperature (°C/°F), and vacuum (mBar, Torr, Pa)
- Programmable email alerts via Ethernet connection
- Display customization: brightness, touch sounds on/off, screen timeout on/off
- Maintenance alerts for vacuum pump oil change, refrigeration cleaning, total operating hours, line voltage offset
- Level-specific security lock-out to prevent unauthorized changes
- Hot gas defrost with auto shut-off at +60° C
- On/standby switch
- Moisture sensor prevents refrigeration/vacuum start-up if moisture detected in drain line
- Vacuum control valve maintains vacuum set point
- Vacuum break valve bleeds air when power is off to freeze dryer or vacuum pump
- Automatic restart if power outage is less than ~5 minutes; safe lockout if collector warms beyond limits
- Side-mounted USB port and rear-mounted Ethernet connection
- Side-mounted quick-disconnect drain hose fitting with lanyard, 18" 1/4" ID silicone tubing and clamp included
- Rear-mounted electrical receptacle for vacuum pump connection
- 3-wire electrical cord with plug
- 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
Required Accessories (Not Included)
- Vacuum pump with ≥98 L/min displacement, 0.002 mBar ultimate pressure, and fitting for 3/4" ID vacuum hose
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- Chemical-resistant PTFE coating for safe processing of corrosive samples
- Compact benchtop footprint to maximize lab space efficiency
- Advanced real-time monitoring and data logging improve control and traceability
- Customizable alerts and safety lock-outs protect samples and equipment
- Reliable -50° C collector temperature ensures consistent lyophilization performance
Why Choose the FreeZone 4.5L Benchtop Freeze Dryer with PTFE Coil and Collector?
Combining rugged design with advanced control features, the freeze dryer offers dependable freeze drying performance for light to moderate sample loads. Its chemical resistance, user-friendly interface, and comprehensive safety systems make it an excellent choice for research, quality control, and diagnostic labs handling aqueous and corrosive materials.
