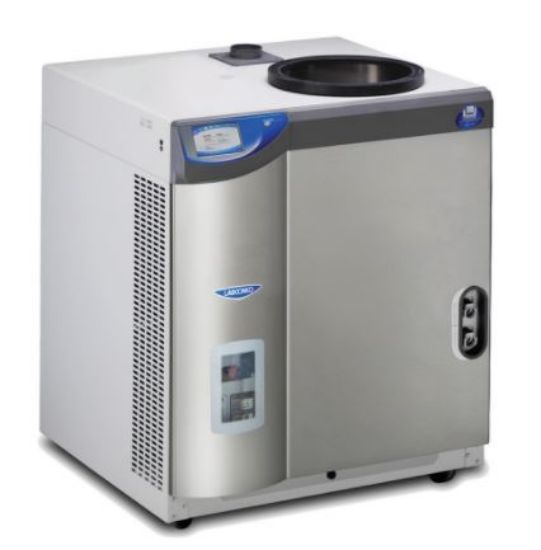

The Labconco FreeZone 12 Liter Console Freeze Dryer is designed for lyophilizing moderate to large sample loads or numerous small container batches. The console features a front viewing window, interior space for a vacuum pump, and accommodation for a full-size tray dryer such as the FreeZone Stoppering Tray Dryer (pump and tray dryer sold separately). Dual 3/4 hp HCFC/CFC-free refrigeration systems cool the upright stainless steel collector coil to -84° C, suitable for low eutectic point samples including acetonitrile.
Product Features
- Upright stainless steel collector coil capable of holding 12L of ice before defrosting; stainless steel collector lid, 3/4" thick, with neoprene gasket
- Console cabinet with interior space for vacuum pump (sold separately) and two-piece, removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- Brushed stainless steel and glacier white, powder-coated steel exterior with blue accents
- Full color, 5" capacitive touch screen with Lyo-Works OS:
- Real-time display of collector temperature, vacuum level, and optional End-Zone end point detection system
- Start-up mode for collector cool-down and vacuum pull-down (automatic or manual)
- Operating mode (standby or run)
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
- Data logging stores and displays data in table or chart format; export via USB or Ethernet
- Settings include language, time, time zone, temperature (°C or °F), and vacuum (mBar, Torr, or Pa)
- Alerts programmable to send via Ethernet connection to user-entered email addresses
- Display settings include brightness, touch sounds (on/off), and screen timeout in minutes (on/off)
- Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours, and line voltage offset
- Level-specific security lock-out prevents changes to programs and other system parameters
- Hot gas defrost with auto shut off at +60° C
- On/standby switch
- Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
- Vacuum control valve maintains vacuum level set point
- Vacuum break valve bleeds air into the system when power to the freeze dryer or vacuum pump is shut off; if outage less than ~5 minutes occurs, freeze dryer restarts automatically, otherwise manual restart required
- Side-mounted USB port and rear-mounted Ethernet connection
- Front-mounted quick-disconnect drain hose fitting and side-mounted lanyard with hose connector (18", 1/4" ID silicone tubing and clamp included)
- Internal electrical receptacle for vacuum pump connection
- 3-wire electrical cord with plug
- 3/4" OD vacuum connection, 36" of 3/4" ID vacuum hose, and two clamps included
Note: Vacuum pump, drying accessory, and freeze dry glassware (if not bulk freeze drying) are required but not included.
Options Include
- Purge valve for isolating the vacuum pump from the freeze dryer
- Built-in stainless steel mini vacuum drying chamber with 50-watt heater, microprocessor control to +60° C, 3/4" thick clear acrylic lid with neoprene gasket (chamber not cooled)
Required Accessories (Not Included)
- Vacuum pump with displacement of at least 98 L/min, 0.002 mBar ultimate pressure, and fitting suitable for 3/4" ID vacuum hose
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- Reliable freeze drying with large 12L ice capacity collector to minimize defrost frequency
- Advanced Lyo-Works touchscreen OS provides real-time monitoring, data logging, and control
- PTFE-coated coil and chamber resist corrosive compounds for extended durability
- Comprehensive safety features including moisture sensors, vacuum control, and break valves
- Options for enhanced versatility such as purge valve and mini vacuum drying chamber
Why Choose the FreeZone 12L Console Freeze Dryer with PTFE Coil and Collector, Purge Valve?
The freeze dryer delivers dependable lyophilization performance for moderate to large sample loads. Its durable stainless steel construction combined with chemical-resistant PTFE-coated components ensures longevity and operational reliability. Advanced touchscreen controls, programmable alerts, and integrated safety features make this freeze dryer ideal for modern laboratory workflows.
