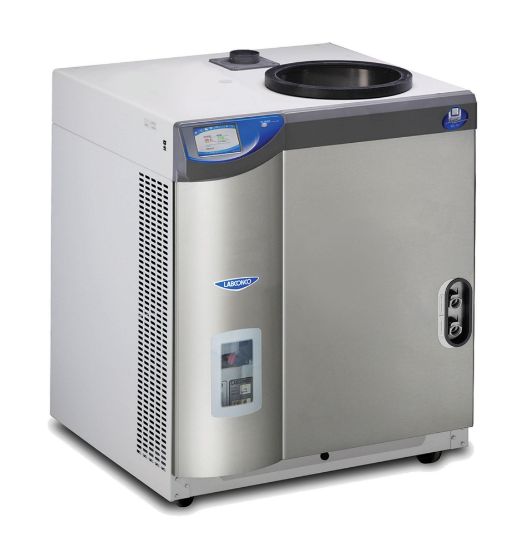

The Labconco FreeZone 12 Liter -50¯°C Console Freeze Dryer combines high-capacity lyophilization with advanced features for modern labs. Designed to handle moderate to large sample loads, it includes a stainless steel collector coil with 12L ice capacity, integrated purge valve, and built-in mini chamber for versatile drying applications. The compact console design houses a vacuum pump (sold separately) and supports large tray dryers, while the intuitive Lyo-Works OS touchscreen provides real-time monitoring and control.
Product Features
- Upright stainless steel collector coil holds up to 12L of ice before defrosting
- 3/4" thick acrylic collector lid with neoprene gasket
- Console cabinet with internal vacuum pump space and removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- Brushed stainless steel and glacier white powder-coated steel exterior with blue accents
- 5" full color capacitive touch screen running Lyo-Works OS: real-time collector temperature, vacuum level, and optional End-Zone detection
- Automatic/manual collector cool-down and vacuum pull-down
- Vacuum set point, alerts, diagnostics, defrost control, and user manual access
- Data logging with table/chart view; export via USB or Ethernet
- Programmable alerts via Ethernet to email
- Customizable settings: language, temperature, time zone, vacuum units
- Level-specific security lock-out and maintenance reminders
- Hot gas defrost with auto shut off at +60 °C
- Moisture sensor prevents start-up if moisture detected in drain line
- Vacuum control and break valves for consistent vacuum and power safety
- Side-mounted USB port; rear Ethernet connection
- Front quick-disconnect drain hose, side lanyard with connector, 36" vacuum hose and clamps included
- Internal power receptacle for vacuum pump; 3-wire cord with plug
- 3/4" OD vacuum connection
Vacuum pump, drying accessory and freeze dry glassware (if not bulk freeze drying) are required (not included).
Options Include
- PTFE-coated collector coil and chamber for corrosive compound processing
Required Accessories (Not Included)
- Vacuum pump ≥98L/min, 0.002mBar ultimate pressure, 3/4" ID hose fitting
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- Supports moderate to large sample volumes efficiently
- Durable stainless steel and powder-coated construction for extended life
- Advanced touchscreen interface with real-time data and remote alerts
- Safety features protect samples during power loss or moisture events
- Compact console saves space while providing internal vacuum pump housing
- Versatile configuration with purge valve and mini chamber for specialized needs
Why Choose the FreeZone 12 Liter -50°C Console Freeze Dryer with Stainless Steel Coil, Purge Valve & Mini Chamber?
This freeze dryer delivers reliable, high-capacity lyophilization with intuitive controls, optional corrosion resistance, and built-in accessories. Ideal for research, biotech, and pharmaceutical labs requiring consistent results and flexible operation in limited space.
