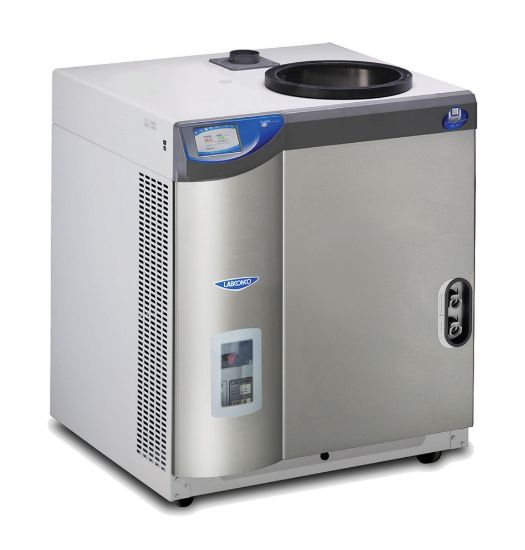

The Labconco FreeZone 12 Liter -50°C Console Freeze Dryer features a PTFE-coated coil and collector, integrated purge valve, and a built-in mini vacuum drying chamber—making it ideal for lyophilizing moderate to large sample loads, including corrosive compounds. This robust system combines a stainless steel cabinet, compact console design, and advanced Lyo-Works OS touchscreen for precise monitoring and control. Perfect for research, biotech, and pharmaceutical labs demanding high performance, durability, and chemical resistance.
Product Features
- PTFE-coated upright collector coil holds up to 12L of ice before defrosting
- 3/4" thick acrylic collector lid with neoprene gasket
- Console cabinet with internal space for vacuum pump and removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- 5" capacitive touchscreen with Lyo-Works OS: real-time collector temperature, vacuum level & optional End-Zone detection
- Automatic/manual collector cool-down and vacuum pull-down; vacuum set point, alerts, diagnostics & defrost control
- Data logging displayed in table/chart format; export via USB or Ethernet
- Alerts programmable to send via Ethernet to user-entered email addresses
- Custom settings: language, time, time zone, temperature units (°C/°F), vacuum units (mBar, Torr, Pa)
- Maintenance alerts and level-specific security lock-out
- Hot gas defrost with auto shut off at +60°C
- Moisture sensor prevents start-up when moisture detected in drain line
- Vacuum control valve maintains vacuum set point; vacuum break valve protects during power loss
- Side-mounted USB port and rear-mounted Ethernet connection
- Front quick-disconnect drain hose fitting and side lanyard with connector; includes 36" vacuum hose and clamps
- Internal electrical receptacle for vacuum pump; 3-wire cord with plug & 3/4" OD vacuum connection
Required Accessories (Not Included)
- Vacuum pump ≥98L/min displacement, 0.002mBar ultimate pressure, fitting for 3/4" ID vacuum hose
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- Handles moderate to large sample volumes efficiently
- PTFE coating protects against corrosive chemicals, extending lifespan
- Integrated purge valve adds operational safety and flexibility
- Built-in mini chamber supports small-batch vacuum drying at controlled temperatures
- Advanced touchscreen simplifies monitoring and data logging
- Compact design saves valuable lab space
- Robust safety features protect samples and equipment
Why Choose the FreeZone 12 Liter -50°C Console Freeze Dryer with PTFE-Coated Coil, Purge Valve & Mini Chamber?
Combining chemical resistance, integrated purge valve, and mini drying chamber, this model offers unmatched flexibility and reliability for labs working with corrosive or sensitive samples. Trusted Labconco engineering ensures consistent, safe, and efficient lyophilization for a wide range of applications.
