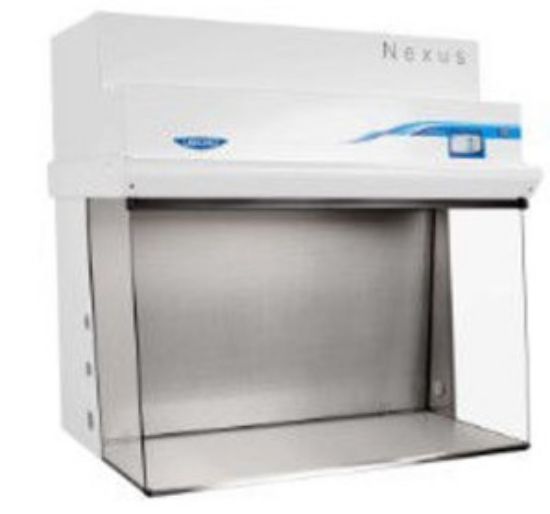

The Labconco 6' Nexus Horizontal Clean Bench with a 26" deep work area and stainless steel interior is designed to protect non-hazardous applications, meeting the rigorous demands of life sciences, materials science, pharmaceutical R&D, and compounding pharmacies. It provides an ISO Class 4 clean airflow environment to safeguard critical, non-hazardous samples. Laminar airflow is driven by an ECM blower powered with Constant Airflow Profile (CAP™) technology for continuous, precise, and energy-efficient airflow with long-lasting HEPA filters.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System and full color, 5" touchscreen featuring:
- Simplified home screen for easy start-up and shut down operations
- Eco mode for idling the blower when the system isn't in use
- Full operational, maintenance, and certification logs for detailed record keeping
- Numeric and visual HEPA filter life graphic for easy HEPA filter monitoring
- Optional password security lock requiring user or admin password to operate the cabinet
- Status line for alarm conditions and alerts when filter life diminishes to 20%, 10%, and 0%
- Interval/elapsed timer for experiment monitoring
- UV light timer (on models with UV)
- Supports 8 languages
- Glass side panels
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to help extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side wall with one utility pass-through port and two service fixture punch-outs
- Electrical outlets: Ceiling mount, flat stainless steel cover; right side on 3' and 4' models, right and left side on 5'-8' models; 115V GFCI double receptacle (max amperage draw 5A); 230V single receptacle (max amperage draw 3A)
- 30.2" interior height
- Optic white epoxy-coated steel exterior
- Nominal face velocity 0.43 m/s
- 3 m power cord with plug included
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Available widths: 3', 4', 5', 6', and 6'
- Interior depths: 21" or 26"
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled epoxy coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- UL 61010.1
- CAN/CSA 22.2 No. 61010-1
- CE and UKCA conformity marking
- ISO Class 4 conditions per ISO 14644-1 and 2
Benefits
- Reliable protection of critical non-hazardous samples with ISO Class 4 laminar airflow
- Energy-efficient ECM blower with CAP™ technology ensures precise, continuous airflow
- User-friendly Nexus OS touchscreen simplifies operation and compliance management
- Durable stainless steel interior and tempered safety glass provide easy cleaning and enhanced durability
- Spill-Stopper design and prefilters extend equipment lifespan and protect HEPA filters
- Remote connectivity and data export streamline maintenance and quality assurance
- Versatile options and accessories allow customization to specific laboratory needs
Why Choose the Labconco 6' Nexus Horizontal Clean Bench, 26" Deep Work Area, Stainless Steel Interior, Laminar ISO Class 4 Airflow, Intelligent OS, 5" Touchscreen, ECM Motor with CAP Technology, Includes Base Stand?
Engineered for laboratories demanding reliable, energy-efficient clean airflow, the Labconco Nexus Horizontal Clean Bench offers advanced ECM blower technology, intelligent user controls, and robust construction. Its 26" deep stainless steel interior and included base stand provide a high-performance, versatile solution for protecting valuable samples in life sciences, pharmaceutical, and materials science settings.
