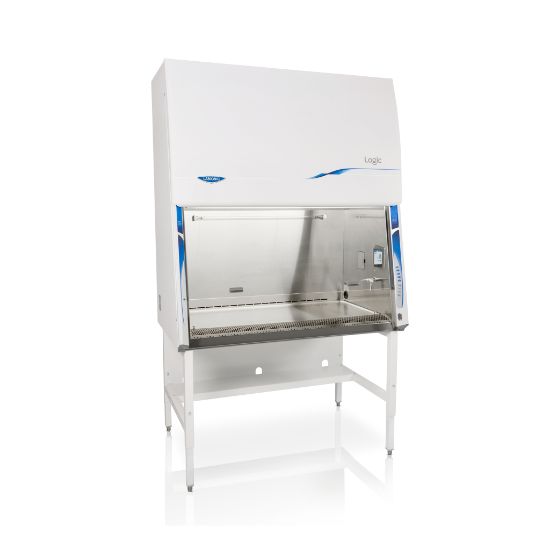

The Labconco 5' Purifier Logic+ Class II Type A2 Biosafety Cabinet provides reliable protection for personnel, products, and the environment against hazardous particulates requiring Biosafety Level 1, 2 or 3 containment. Equipped with a 10" sash opening, UV lamp with timer, right-side mounted factory-installed service fixture, and right-side wall Vacu-Pass™ portal, it’s designed for efficiency and compliance in labs using antineoplastic drugs, genetic material, or other hazardous substances. Approximately 70% of air is recirculated through HEPA filters for superior containment.
Product Features
- Electronically Commutated Motor (ECM) for energy-efficient operation
- Constant Airflow Profile (CAP) airflow monitoring system
- Intrinsically-safe negative pressure design
- Air-Wave™ Entry System & Contain-Air™ Negative Pressure Channel
- 99.99% efficient HEPA filters; optional 99.999% ULPA filters
- Interior-mounted, line-of-sight LCD with MyLogic OS showing filter life & alerts (8 languages)
- Bright, glare-free LED lighting (90–150 footcandles)
- Fully-closing 1/4" tempered safety glass sash
- Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots
- Two flush-mounted stainless steel duplex electrical receptacles (single outlets on 230V models)
- Smart-Start™ programmable startup & Night-Smart™ blower speed reduction
- Leak-tight stainless steel interior & powder-coated exterior
- Removable towel catch under work surface
- Code-activated electronic security lock
- Max sash opening: 22.6" (57 cm); viewing height: 27.0" (69 cm)
- 10° angled sash with counterbalanced easy-lift mechanism
- ADA-compliant touchpad control on right side post
- Noise level <63 dBA; heat load: 990 BTU/hour (4' models)
- Nominal inflow velocity: 0.5 m/sec; downflow velocity: 0.3 m/sec
- Approximately 70% air recirculation
- Overall depth × height: 31.2" × 61.7" (79.2 × 156.7 cm)
- 3 m (10') power cord with plug
- Built-in timer & digital clock
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Available widths: 3', 4', 5', and 6'
- NSF-approved powder-coated telescoping base stand with fixed feet
- Accessory Package: 254 nm UV lamp, ADA-compliant service fixtures with ball-type valves, NSF-approved Vacu-Pass™ Cord & Cable Portal
- Cell Logic+ packages for microscopes and temperature-sensitive samples
- Ventus Canopy Connection for optional ducted exhaust
Compliance
- ETL listed
- NSF International listed
- ADA-compliant controls & receptacles
- CE Conformity marking
- ISO 5 conditions per ISO 14644-1 and 2
Benefits
- Advanced HEPA filtration for reliable containment
- Energy-saving Night-Smart™ technology
- Ergonomic design with angled sash and touchpad controls
- Quiet operation <63 dBA for improved lab comfort
- Flexible configuration with optional accessories
Why Choose the Labconco 5' Purifier Logic+ Class II A2 Biosafety Cabinet with UV Lamp, Service Fixture & Vacu-Pass Portal?
The Labconco 5' Purifier Logic+ with UV lamp, right-side service fixture, and Vacu-Pass™ portal ensures protection, usability, and NSF-listed reliability for critical lab applications.
