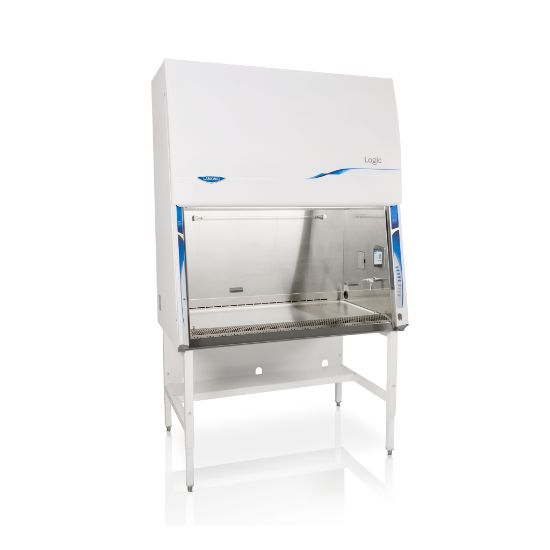

The Labconco 5' Purifier Cell Logic+ Class II Type A2 Biosafety Cabinet with Temp-Zone, Scope-Ready, Service Fixture and Vacu-Pass Portal and Base Stand, 230V, 50/60Hz offers advanced personnel, product, and environmental protection from hazardous particulates and agents that require Biosafety Level 1, 2 or 3 containment. It’s ideal for applications involving antineoplastic drugs, genetic material, asbestos, and other hazardous airborne particulates. All models are NSF compliant to support stringent lab safety requirements.
Product Features
- Electronically Commutated Motor (ECM)
- Constant Airflow Profile (CAP) airflow monitoring system
- Intrinsically-safe negative pressure design
- Air-Wave™ Entry System
- Contain-Air™ Negative Pressure Channel
- Supply and exhaust 99.99% efficient HEPA filters; optional 99.999% ULPA filters
- Interior-mounted, line-of-sight color LCD with MyLogic OS (displays filter life, alarms; 8 languages)
- Bright, glare-free LED lighting (90–150 footcandles) outside contaminated area
- Fully-closing, clear 1/4" tempered safety glass sash
- Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots
- Two electrical duplex receptacles (single outlets on 230V models)
- Smart-Start™ System for programmable start up & shut down
- Night-Smart™ System reduces blower speed when sash is closed
- Leak-tight stainless steel interior & powder-coated steel exterior
- Removable towel catch under work surface
- Code-activated electronic security lock
- 22.6" (57 cm) max sash opening & 27.0" (69 cm) viewing height
- 10° angled sash with counterbalanced, easy-lift mechanism
- ADA-compliant touchpad control on right side post
- Noise level <63 dBA
- Heat load 990 BTU/hour (4' models)
- Removable, seamless type 304 stainless steel dished work surface with lift out knobs
- Nominal inflow velocity: 0.5 m/sec; nominal downflow velocity: 0.3 m/sec
- Approximately 70% air recirculation
- Overall depth x height: 31.2" x 61.7" (79.2 x 156.7 cm)
- 3 m power cord with plug
- Built-in timer and digital clock
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- 3', 4', 5', and 6' widths
- Non-welded, NSF-Approved, powder-coated steel telescoping base stand with fixed feet
- Accessory Package: 254 nm UV lamp (not on Scope-Ready models), ADA-compliant service fixtures, NSF-Approved Vacu-Pass™ Cord & Cable Portal
- Cell Logic+ Packages: Scope-Ready™ Package with sash cutout and Pure-Vu™ Seal (Stand-Still™ Isolation Platform required)
- Temp-Zone™ Package: temperature-controlled work area, 10.5" x 12.0" (27 x 30 cm); circulator required (not included)
- Ventus Canopy Connection
Compliance
- ETL listed
- NSF International and modified ASHRAE 110 compliant
- ADA-compliant (height of controls and receptacles)
- CE Conformity marking
- ISO 5 conditions per ISO 14644-1 and 2
Benefits
- Comprehensive protection for personnel, products, and environment
- Flexible design supports direct exhaust or canopy-connected operation
- Advanced HEPA/ULPA filtration ensures contamination control
- Quiet, energy-efficient ECM motor with smart airflow systems
- Ergonomic Temp-Zone™ and Scope-Ready™ features enhance usability
Why Choose the Labconco 5' Purifier Cell Logic+ Class II Type A2 Biosafety Cabinet with Temp-Zone, Scope-Ready, Service Fixture and Vacu-Pass Portal and Base Stand?
The Labconco Cell Logic+ integrates Temp-Zone™, Scope-Ready™, Vacu-Pass Portal, and ergonomic design to deliver unmatched safety, compliance, and ease of use. Ideal for demanding labs needing BSL 1–3 containment, it ensures quiet, efficient performance and durable construction backed by a five-year warranty.
