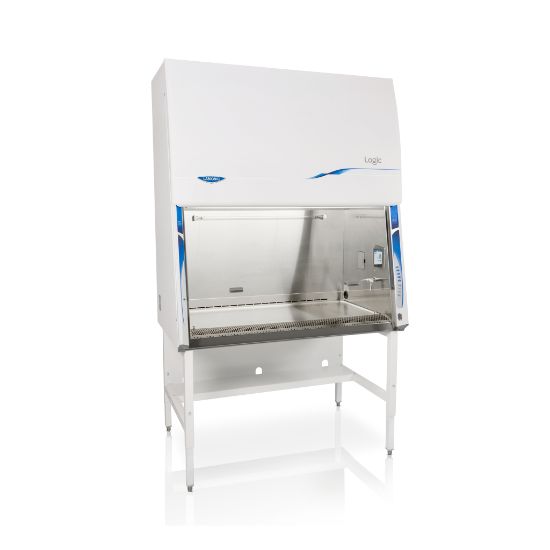

The Labconco 5' Purifier Cell Logic+ Class II Type A2 Biosafety Cabinet with Temp-Zone, Scope-Ready, Service Fixture and Vacu-Pass Portal, 230V, 50/60Hz provides superior personnel, product and environmental protection from hazardous particulates and agents requiring Biosafety Level 1, 2 or 3 containment. Perfect for work involving antineoplastic drugs, genetic material, asbestos and other hazardous airborne particulates. All models are NSF compliant for safety and reliability in demanding lab environments.
Product Features
- Electronically Commutated Motor (ECM)
- Constant Airflow Profile (CAP) airflow monitoring system
- Intrinsically-safe negative pressure design
- Air-Wave™ Entry System
- Contain-Air™ Negative Pressure Channel
- Supply and exhaust 99.99% efficient HEPA filters; 99.999% ULPA filters available
- Interior-mounted, line-of-sight color LCD with MyLogic OS (8 languages, filter life & alarm status)
- Bright, 90–150 footcandle glare-free LED lighting outside the contaminated area
- Fully-closing, clear 1/4" tempered safety glass sash
- Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots
- Two electrical duplex receptacles (single outlets on 230V models, ground fault interruption on 115V)
- Smart-Start™ System user-programmable start up & shut down
- Night-Smart™ System reduces blower speed when sash is closed
- Leak-tight stainless steel interior & powder-coated steel exterior
- Removable towel catch under work surface
- Code-activated electronic security lock
- 22.6" (57 cm) max sash opening & 27.0" (69 cm) viewing height
- 10° angled sash with counterbalanced, easy lift mechanism
- ADA-Compliant touchpad control on right side post
- Noise level <63 dBA
- Heat load 990 BTU/hour (4' models)
- Removable, seamless type 304 stainless steel, dished work surface with lift out knobs
- Nominal inflow velocity: 105 fpm (0.5 m/sec); nominal downflow velocity: 55 fpm (0.3 m/sec)
- Approximately 70% air recirculation
- Overall depth x height: 31.2" x 61.7" (79.2 x 156.7 cm)
- 10' (3 m) power cord with plug
- Built-in timer and digital clock
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- 3', 4', 5', and 6' widths
- International electrical configurations
- Non-welded, NSF-Approved, powder-coated steel telescoping base stand with fixed feet
- Accessory Package: 254 nm UV lamp (not on Scope-Ready models), ADA-compliant service fixtures with ball-type valves, NSF-Approved Vacu-Pass™ Cord & Cable Portal
- Cell Logic+ Packages: Scope-Ready™ Package with sash cutout and Pure-Vu™ Seal; Stand-Still™ Isolation Platform required (sold separately)
- Temp-Zone™ Package: temperature-controlled work area, 10.5" wide x 12.0" deep (27 x 30 cm); circulator required (not included)
- Ventus Canopy Connection
Compliance
- ETL listed
- NSF International and modified ASHRAE 110 compliant
- ADA-compliant (height of controls and receptacles)
- CE Conformity marking (230V models)
- ISO 5 conditions per ISO 14644-1 and 2
Benefits
- Reliable triple protection for personnel, products and environment
- Quiet and efficient operation supports comfortable lab environments
- Flexible exhaust design for direct or canopy-connected discharge
- Advanced airflow monitoring and HEPA/ULPA filtration ensure safety
- Ergonomic features and integrated Temp-Zone™ & Scope-Ready™ packages increase usability
Why Choose the Labconco 5' Purifier Cell Logic+ Class II Type A2 Biosafety Cabinet with Temp-Zone, Scope-Ready, Service Fixture and Vacu-Pass Portal?
The Labconco Cell Logic+ combines Temp-Zone™, Scope-Ready™, Vacu-Pass Portal and advanced safety systems into a single, high-performance biosafety cabinet. Ideal for research with hazardous particulates and BSL 1–3 containment needs, it offers durability, quiet operation, ergonomic design and trusted compliance—all engineered to keep your lab safe and efficient.
