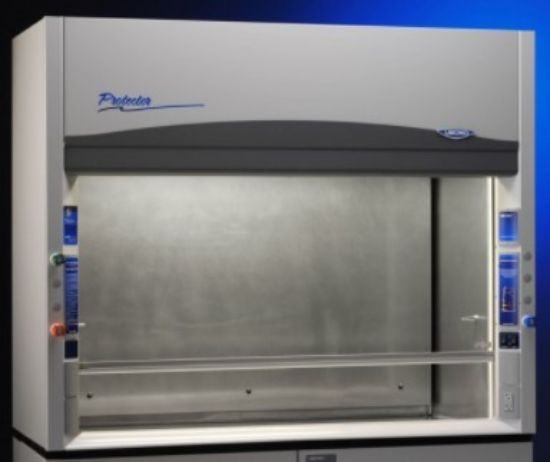

The Labconco 5' Protector Stainless Steel Perchloric Acid Hood is purpose-built for safe procedures involving perchloric acid. Featuring a seamless Type 316 stainless steel liner, integrated washdown system, and by-pass airflow design, it offers superior corrosion resistance, easy cleaning, and compliance with laboratory safety standards. Ideal for labs seeking reliable and efficient fume containment.
Product Features
- By-pass airflow design and by-pass block for consistent ventilation
- Curved Eco-Foil™ air foil and Clean-Sweep™ openings for optimal inflow air control
- Seamless Type 316 stainless steel liner (23.5" interior depth) with radiused corners, integral work surface, drainage trough, and pre-set baffle(s)
- Built-in washdown system with internal spray nozzles (max flow 0.5–1.0 GPM)
- Tempered safety glass vertical-rising sash with cable and pulley
- Glacier white, powder-coated steel exterior and black enamel-coated hardboard supporting surface
- Pre-wired LED lighting rated to 50,000 hours; ADA-compliant light and blower switches
- Cord-Keeper™ slots on both sides of the air foil
- Removable front, side, and access panels for easy service and maintenance
- 11.0" OD Type 304 stainless steel exhaust connection(s)
Fixtured Models May Feature
- Two pre-plumbed service fixtures with forged brass valves and tubing for gas and air (convertible to cold water or vacuum)
- Pre-wired GFCI electrical duplex receptacle on the lower right side; additional receptacle on 8' models
Options
- Available in 4', 5', 6', and 8' widths
Required Accessories (Not Included)
- Dedicated remote PVC blower
- Wash rings and ductwork
- Base cabinet or stand
Optional Accessories
- Service Fixture Kits and Electrical Duplex Kits
- Washdown Valve Kit and Guardian Airflow Monitor Kits
- Sash Stop Kits, Ceiling Enclosure and Rear Finish Panel Kits
Compliance
- SEFA 1, NFPA 45, ASTM E84-09C, ASHRAE 110, ANSI Z9.5, SEFA 8
- CFR 29 Part 1910, UL 61010-1, CAN/CSA C22.2 No. 61010.1, UL 1805
Benefits
- Exceptional corrosion resistance from Type 316 stainless steel
- Integrated washdown system prevents hazardous salt build-up
- Quiet, efficient LED lighting improves workspace visibility
- Flexible design with optional fixtures and accessories
- Easy cleaning and maintenance with seamless liner and removable panels
- Meets major lab safety and performance standards
Why Choose the Labconco 5' Protector Stainless Steel Perchloric Acid Hood 31.7" Depth?
This hood delivers reliable performance and safety for perchloric acid applications. Its seamless stainless interior, built-in washdown, and airflow design make it a dependable choice for modern labs requiring compliance and long-term durability.
