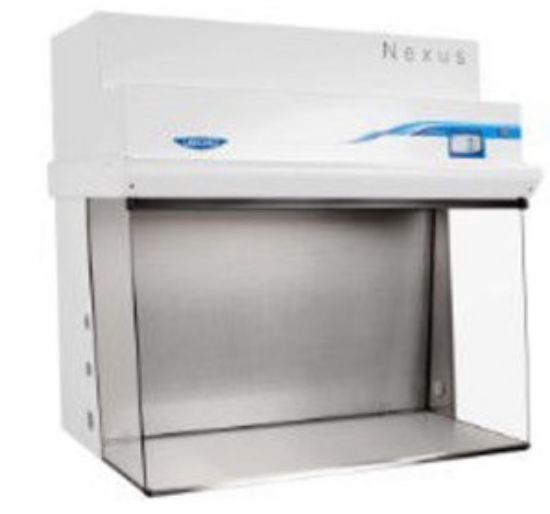

The Labconco 5' Nexus Horizontal Clean Bench provides a 21" deep work area with a durable epoxy-coated steel standard interior and non-shedding PVC work surface. Designed to protect non-hazardous samples in life sciences, pharmaceutical R&D, materials science, and compounding pharmacies, it delivers an ISO Class 4 laminar airflow environment powered by an energy-efficient ECM blower featuring Constant Airflow Profile (CAP™) technology for continuous, precise airflow and extended HEPA filter life.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM) for efficient laminar airflow
- Unidirectional, laminar airflow to protect samples
- Constant Airflow Profile™ (CAP) airflow monitoring system for precision control
- Nexus Operating System with full-color 5" touchscreen interface
- Simplified home screen for easy startup and shutdown
- Eco mode idles blower when not in use to save energy
- Full operational, maintenance, and certification logs for compliance tracking
- Numeric and visual HEPA filter life graphic for easy monitoring
- Optional password security lock requiring user/admin password to operate
- Status line alarms at 20%, 10%, and 0% filter life
- Interval/elapsed timer for experiment monitoring
- UV light timer for models equipped with UV
- Supports 8 languages
- Glass side panels for containment and visibility
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side walls with one utility pass-through port and two service fixture punch-outs
- Ceiling-mounted electrical outlets with flat stainless steel cover
- Right side outlets on 3' and 4' models; right and left side outlets on 5'-8' models
- 115V GFCI double receptacle with max 5A draw; 230V single receptacle with max 3A draw
- 30.2" interior height
- Optic white epoxy-coated steel exterior
- Nominal face velocity: 0.43 m/s
- 3 m power cord with plug included
- Five-year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Widths: 3', 4', 5', 6', and 8'
- Interior depth: 21" or 26"
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled epoxy coated steel non-welded telescoping base stand with leveling feet
Compliance
- ETL Listed
- UL 61010.1 Certified
- CAN/CSA 22.2 No. 61010-1 Certified
- CE and UKCA Conformity Markings
- ISO Class 4 conditions per ISO 14644-1 and 2
Benefits
- Protects critical non-hazardous samples with precise laminar airflow technology.
- Energy-efficient ECM motor with CAP technology ensures stable airflow and lowers energy costs.
- Intuitive Nexus OS touchscreen simplifies operation, maintenance, and compliance logging.
- Standard epoxy-coated steel interior and PVC work surface offer durability and easy cleaning.
- Comprehensive filter life monitoring with alarms minimizes downtime.
- Remote data export and connectivity improve lab management and compliance.
- Includes sturdy base stand for immediate setup and use.
Why Choose the Labconco 5' Nexus Horizontal Clean Bench, 21" Deep Work Area, Standard Interior, Laminar ISO Class 4 Airflow, Intelligent OS with 5" Touchscreen, ECM Motor with CAP Technology, Includes Base Stand?
The Labconco Nexus Horizontal Clean Bench combines advanced airflow control with robust construction and smart digital controls. Certified to ISO Class 4 standards, it’s engineered to protect non-hazardous samples in pharmaceutical, life sciences, and materials research environments, providing reliable performance with convenient base stand inclusion for fast deployment.
