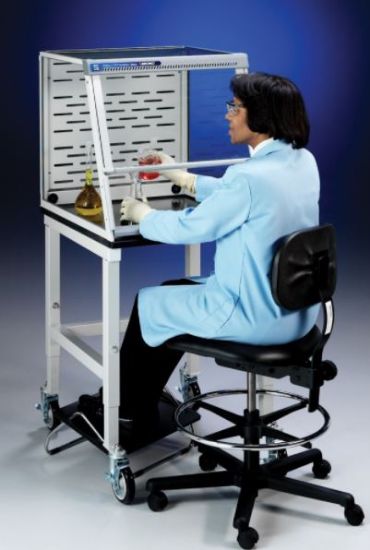

Labconco 2' Protector XVS Ventilation Station, 22.8" High is designed for light duty fume hood applications such as science classrooms, solvent cleaning, weighing stations, pathology, and cytology. Its low profile and glass construction make it ideal for educational settings, providing excellent containment and visibility.
Product Features
- By-pass airflow design
- Deep interior of 23.4" accommodates various apparatus including large balances
- Patented Clean-Sweep™ air foil for effective containment
- Upper containment sash foil directs contaminants away from the operator's breathing zone
- Upper dilution air supply introduces room air to dilute contaminants and bathes the back of the sash with clean air
- Patented pivoting rear baffle with zones of perforations promotes horizontal laminar airflow
- Side-entry air foils enhance containment
- Glacier white and gray powder-coated aluminum frame with steel rear plenum and baffle; no plastic-to-plastic bonding
- Tempered safety glass front sash, sides, and top for excellent visibility, ambient light, and protection
- Ergonomic 20° angled, hinged, pivoting sash with wiping seal
- Sash opening height options: 8", 10", or 12" depending on model
- Two utility ports with iris openings and plastic plugs
- Flexible exhaust options with 2" x 10" rectangular exhaust collars on top and bottom
- Particulate containment independently verified by SafeBridge Consultants, Inc.
- Modified ASHRAE 110 conformity as low as 50 fpm independently verified by ECT, Inc.
Options
- Widths available: 2', 3', 4', 5', 6', and 8'
- Heights available: 22.8" and 32.0"
- Depths available: 29.0" and 35.5"
- 5', 6', and 8' models with 35.5" depth include a left-side mounted waste chute (bags not included)
Required Accessories (Not Included)
- Remote blower or FilterMate Portable Exhauster(s)
- Work surface
- Supporting base
- Ductwork
Optional Accessories
- Fluorescent Task Lights
- Guardian Airflow Monitors
- Utility Shelves, Bottle Holder, and Tissue Holder
- Exhaust Transition Adapters
- Waste Chute Stopper
- Waste Chute Bags
Compliance
- Modified ASHRAE 110
- SEFA 1
- ANSI Z9.5
- SEFA 8
Benefits
- Provides excellent user protection with patented airflow designs
- Suitable for educational and laboratory environments
- Flexible exhaust and accessory options to customize according to needs
Why Choose Labconco 2' Protector XVS Ventilation Station 22.8" High?
Labconco Protector XVS Ventilation Station offers reliable containment with patented airflow technology, superior visibility, and ergonomic design, making it a trusted choice for light duty ventilation in scientific and educational settings.
