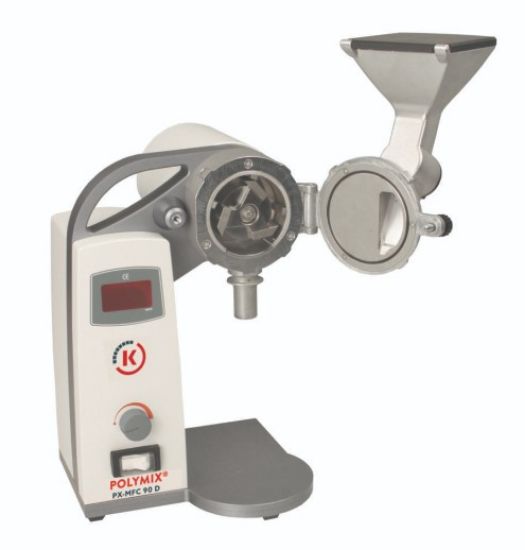

The Kinematica POLYMIX Laboratory Mill PX-MFC 90 D is designed for dry sample grinding in the laboratory. Its modular design allows for interchangeable hammer and cutting mill sets to accommodate a wide range of materials.
Product Features
- Blade grinding attachment for dried, stringy, fibrous, and grease-free materials such as wood, straw, dried meat, leather, paper, carbon, and synthetics
- Hammer grinding attachment for dried, brittle, and grease-free materials like dried grain, beans, bones, rock, and ceramics
- Sieves ranging from 0.2 mm up to 6 mm diameter
- Powerful 1000 W three-phase motor with low noise operation
- Milling chamber with interchangeable inserts
- Integrated speed control with LED display for speed and status messages
- Safety system prevents operation when lid is open
- Overheating, overload, and rotor blocking protection
- Speeds from 50 to 6,000 rpm for maximum grinding efficiency
- Working volume of 300 ml (funnel volume)
- Safety stopper for certain grinding materials
Specifications
- Application volume: Hopper 300 ml
- Sieves: 0.2, 0.5, 0.8, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0 mm
- Motor input power: 1000 W
- Speed range: up to 6000 min⁻¹
- Drive dimensions (L x W x H): 251 x 325 x 480 mm
- Tested to: IEC/EN 61000-6-2 / EN 61000-6-3, IEC/EN 61010-2-51
Scope of Supply
- Mill with hammer or cutting mill sets
- 2 mm sieve
- Tool set
- Wooden stand with 12 collection tubes
Benefits
- Flexible grinding options for a wide range of dry laboratory samples
- High efficiency with precise speed control and multiple sieve sizes
- Robust safety features ensure secure operation
- Durable construction provides long-lasting performance in lab environments
Why Choose Kinematica POLYMIX Laboratory Mill PX-MFC 90 D 230 V EU with Blade Grinding?
This laboratory mill delivers reliable, versatile, and safe dry grinding for research, quality control, and industrial applications, supporting precise sample preparation in your lab.
