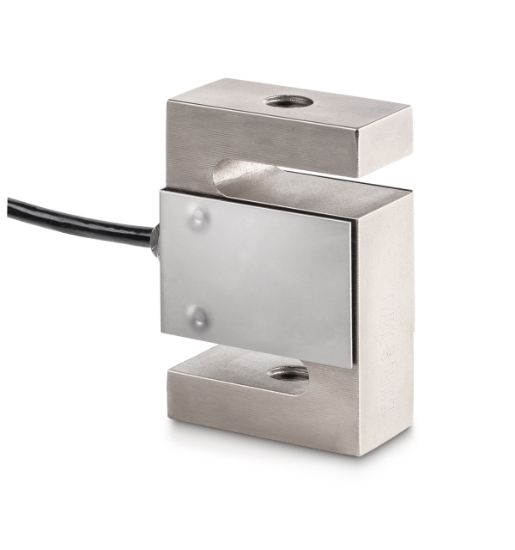

The Kern Measuring Cell 1500 Kg is a high-precision sensor designed for tensile and compressive force measurements in demanding industrial environments. Its nickel-plated steel construction and IP67 rating make it ideal for use in wet or dusty conditions where reliability and accuracy are crucial.
Product Features
- Nominal Load: 1500 Kg
- Accuracy Class: OIML R60 C3
- Protection Rating: IP67 According To EN 60529, Hermetically Sealed
- Material: Nickel-Plated Steel For Corrosion Resistance And Strength
- 4-Wire Connection Ensures Stable Signal Transmission
- Nominal Sensitivity: 2 mV/V
- IP67: Designed For Temporary Use In Wet Areas, Cleanable With Water Jet, Temporary Submersion Possible
Note: EX Version And Accuracy Class C4 Available On Request.
Benefits
- Precision Measurement In Industrial Force Applications
- Resistant To Water, Dust, And Harsh Environments
- Reliable Operation With Strong Signal Output
- Compatible With Weighing Systems, Hoppers, And Test Benches
Scope Of Application
For Tensile And Compressive Force Measurement In Industrial And Testing Applications.
Why Choose The Kern Measuring Cell 1500 Kg?
Engineered for high-load measurement tasks, the Kern Measuring Cell 1500 Kg delivers consistent and accurate results in rugged environments. With IP67 protection, strong build quality, and optional EX or C4 versions, it’s an excellent solution for precise force detection in professional systems.
