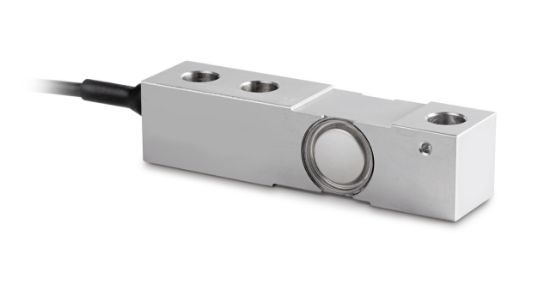

The Kern Load Cell is a precision-engineered shear beam measuring cell designed for accurate mass measurement in demanding environments. Its robust stainless steel construction and IP68/IP69K protection ensure reliable performance and long-term stability under compression forces.
Product Features
- Weighing capacity [Max]: 1000 kg
- Design: shear beam measuring cell
- Directions of force: compression
- Measuring applications: mass
- Load cell combined error: 0.017%
- Load cell OIML class: C3
- Load cell resolution (verifiable): 3000 e
- Load cell Y-value: 10000
- Load cell characteristic value (nominal): 2 mV/V
- IP protection (complete device): IP68, IP69K
- Material: stainless steel
- Load cell connection: 6-wire
- Cable length: 5 m
- Mounting - force application: threaded hole M12
- Mounting - force dissipation: 2 × through hole Ø 13.5 mm
Benefits
- Ensures precise and reliable mass measurement in industrial environments
- Durable stainless steel construction provides long-term stability and corrosion resistance
- IP68/IP69K-rated housing protects against dust, water, and high-pressure cleaning
- Simple installation with 6-wire connection and versatile mounting options
- Ideal for shear beam weighing applications in harsh conditions
Why Choose the Kern Load Cell?
The Kern Load Cell combines precision engineering, robust stainless steel construction, and IP68/IP69K protection to deliver consistent, high-accuracy performance. Perfect for industrial mass measurement requiring durability and reliability.
