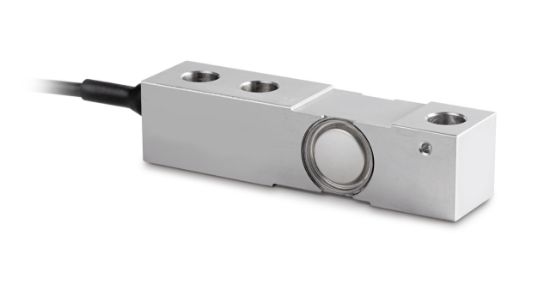

The Kern Load Cell is a precision shear beam measuring cell designed for extremely high-capacity mass measurements in industrial environments. Its stainless steel construction and IP68/IP69K protection provide reliable and durable performance under heavy compression forces.
Product Features
- Weighing capacity [Max]: 10000 kg
- Design: shear beam measuring cell
- Directions of force: compression
- Measuring applications: mass
- Load cell combined error: 0.017%
- Load cell OIML class: C3
- Load cell resolution (verifiable): 3000 e
- Load cell Y-value: 10000
- Load cell characteristic value (nominal): 2 mV/V
- IP protection (complete device): IP68, IP69K
- Material: stainless steel
- Load cell connection: 6-wire
- Cable length: 5 m
- Mounting - force application: threaded hole M24 × 2
- Mounting - force dissipation: 2 × through hole Ø 27 mm
Benefits
- Accurate and reliable mass measurement for ultra-high-capacity industrial applications
- Stainless steel construction ensures long-term durability and corrosion resistance
- IP68/IP69K-rated housing protects against dust, water, and high-pressure cleaning
- Flexible mounting options for heavy-duty installations
- Ideal for demanding shear beam weighing applications requiring high precision
Why Choose the Kern Load Cell?
The Kern Load Cell combines precision engineering, robust stainless steel construction, and IP68/IP69K protection to deliver dependable performance for extreme industrial weighing applications.
