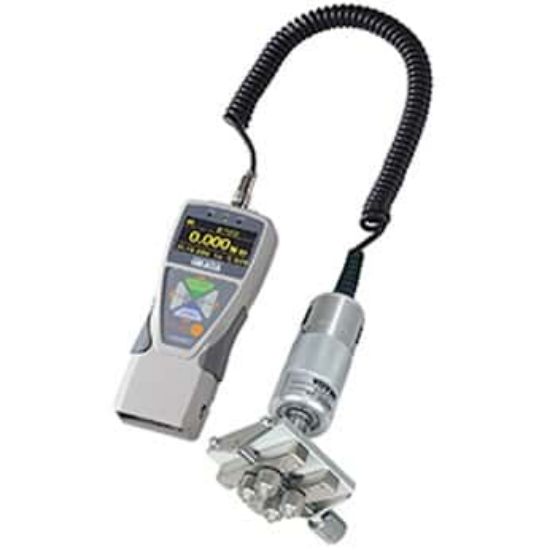

The Imada Torque Tester 15 lb (model HTGS-ST-01-15) is a rugged and ergonomic handheld digital cap torque tester designed for precise and ultrafast torque measurements on caps up to 2" (51 mm) diameter. Featuring a bright EL display for clear viewing under any lighting conditions and multiple data output options, it provides real-time force data processing at 2000 points per second, making it ideal for quality control and production line use.
Product Features
- Observe force changes in fractions of a millisecond
- Process and transmit data at 2000 data points per second
- Hand measure cap torque in any position on caps up to 2" (51 mm) diameter
- Easily view the bright EL display under any lighting conditions
- Set high and low torque values and view "Go/NoGo" conditions with LED indicators
- Store up to 1000 data points internally or send results via USB, RS-232, Digimatic, or analog outputs
- Includes data acquisition software for data management and real-time streaming
- Power the unit via AC adapter or rechargeable internal battery (both included)
- Rugged and ergonomic design with a separate sensor and table for flexible measurement positions
- Operate in eight different languages via intuitive menu
- Torque testers protected to 200% capacity with overload alarm flashing at 110% full-scale
Whats Included
- Small table with stainless steel pegs
- ZT Logger data acquisition software
- USB cable
- Hex wrench
- AC adapter/charger
- Carrying case
- NIST-traceable certificate provided by the manufacturer
Benefits
- Ultrafast data acquisition captures rapid force changes accurately
- Bright EL display ensures easy reading in any lighting environment
- Multiple output options enable seamless integration with production lines
- Flexible power options provide convenience for portable or stationary use
- High capacity protection and overload alarms safeguard the device
- Multilingual support improves usability across global teams
Why Choose the Imada Torque Tester 15 lb?
The Imada HTGS-ST-01-15 Torque Tester combines speed, precision, and versatility in a durable handheld design. Ideal for quality control and production environments, it offers advanced data handling, flexible power options, and clear visual feedback to ensure accurate torque testing on caps up to 2" diameter. Its rugged construction and user-friendly features make it a reliable tool for consistent torque measurement and process control.
