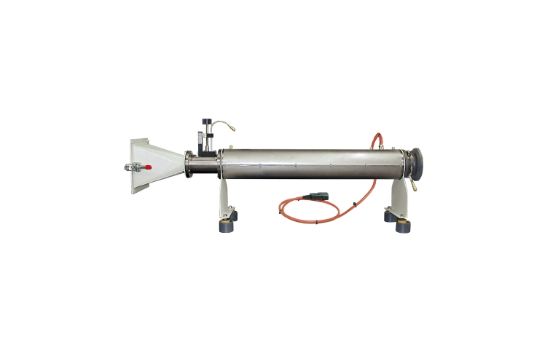

The GUNT WL 314.03 Tube Heat Transferer accessory extends the WL 314 trainer to study convective heat transfer inside a pipe, enabling precise analysis of heat transfer from the tube wall to the parallel-flowing fluid.
Product Features
- Pipe section with integrated heat mat to heat the outer surface of the pipe for convective heat transfer studies.
- Six temperature measuring points in the pipe wall for accurate monitoring of heat transfer.
- Pitot tube measures the velocity distribution across the pipe cross-section.
- Accessory inserted into the WL 314 air duct using quick-release fasteners for secure and easy installation.
- Fan in the air duct conveys ambient air through the pipe section, providing forced convection over the heat transfer surfaces.
- Power and surface temperature of the electric heat mat, along with pipe wall temperatures, are measured and displayed on the WL 314 trainer.
Benefits
- Allows detailed study of convective heat transfer inside a pipe under controlled laboratory conditions.
- Accurate temperature and velocity measurements provide reproducible experimental results.
- Forced convection ensures realistic flow and heat transfer simulation.
- Easy installation and secure operation with quick-release fasteners.
Why Choose GUNT Tube Heat Transferer WL 314.03, Convective?
The GUNT WL 314.03 Tube Heat Transferer provides a reliable platform for studying convective heat transfer inside pipes, ideal for laboratory experiments and educational applications.
