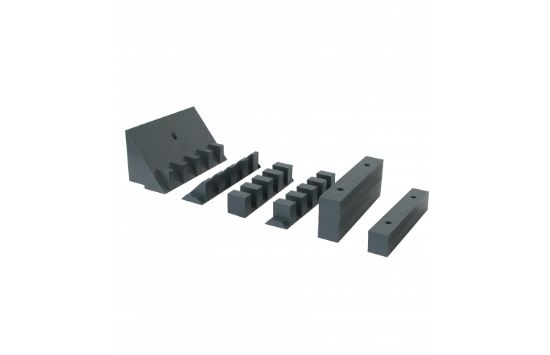

The GUNT Elements for Energy Dissipation (HM 161.35) are designed for use with the HM 161 experimental flume and the ogee-crested weir HM 161.32. They allow the study of methods to dissipate high energy from supercritical discharge downstream of control structures.
Product Features
- Compatible with HM 161.32 ogee-crested weir
- Includes chute blocks, baffle blocks, and end sills for energy dissipation
- Mounted on a base plate for easy installation and adjustment
- Chute block replaces weir outlet of HM 161.32 for experiments
- End sills and baffle blocks can be used individually or combined
- Demonstrates effects on hydraulic jumps and flow energy dissipation
Benefits
- Enables detailed study of energy dissipation techniques
- Protects flume bottom by reducing flow energy
- Supports hydraulic experiments and practical understanding of supercritical flows
- Versatile setup with individually adjustable elements
Why Choose GUNT Elements for Energy Dissipation?
The GUNT HM 161.35 Elements for Energy Dissipation provide a flexible and effective solution for studying flow energy management and hydraulic jump behavior in open channel experiments.
