Measuring Capacity : 20000 N [Max.]
Readability : 10 N

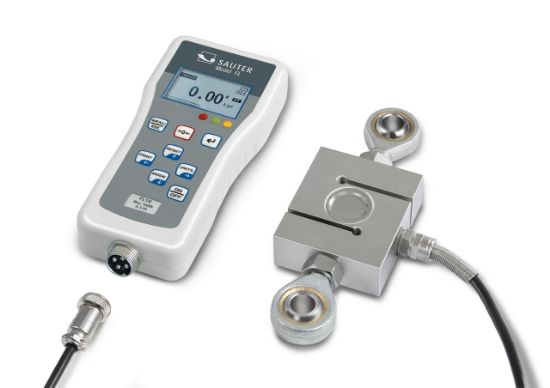

- Premium force-measuring device external measuring cell, tension loops included with delivery
- Turnable display with backlight
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Metal housing for durable usage in harsh environmental conditions
- Can be mounted on all SAUTER test stands
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
- Internal memory for up to 500 measurements
- Continuous analogue output: Linear voltage signal in relation to the load (-2 – +2 V)
- Selectable measuring units: N, kN, kg, oz, lb
- Delivered in a hard carrying case
