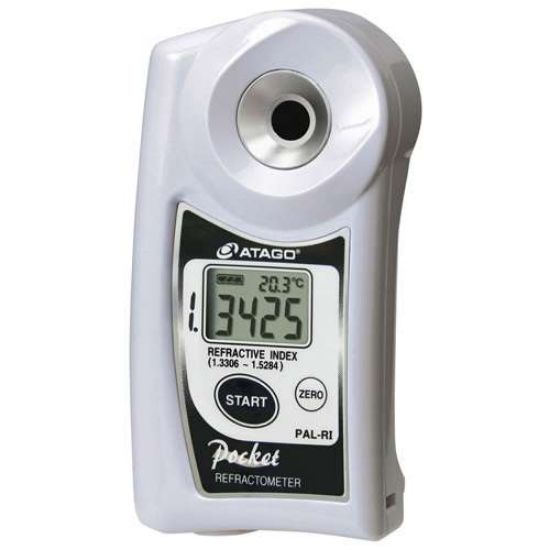

Atago, Digital Refractometer, PAL-RI, Refractive Index, Refractive Index: 1.3306 to 1.5284, Temperature 5 to 45degC_1272014
Representative image only

Atago, Digital Refractometer, PAL-RI, Refractive Index, Refractive Index: 1.3306 to 1.5284, Temperature 5 to 45degC

$508.92

$541.20
6% Discount
The price is inclusive of GST
Ambient Temperature10 to 40ﾟC
Battery LifeApprox. 11,000 times measurement (when an alkaline batteries are used)
Dimensions & weight55(W)×31(D)×109(H)mm, 100g (Main Unit only)
International Protection ClassIP65 Dust-tight and Protected against water jets
Measurement Accuracy (Refractive index)±0.0003　(water at 20ﾟC)
Measurement Accuracy (Temperature)±1ﾟC
Measurement Range (Refractive index)1.3306 to 1.5284
Measurement Range (Temperature)5 to 45ﾟC
Measurement Temperature5 to 45ﾟC
Measurement Time3 seconds
Power Supply2 x AAA alkaline batteries
Resolution (Refractive index)0.0001
Resolution (Temperature)0.1ﾟC
Sample Volume0.3mL
ScaleRefractive Index, Temperature ﾟC
pal-ri_en
Overview

When the start key is pressed after placing some droplets of sample on the prism, the Refractive Index (resolution 0.0001) and temperature °C of the measurement will be displayed continuously.



The PAL is a digital hand-held instrument that will change the traditional conceptions of refractometers. The surprisingly compact size allows you to easily carry it around and use it indoors as well as outdoors.
The unit will expand your range of measuring possibilities.



Features

Light & Compact, 100g.
Ergonomically designed for one-handed operation.

Sample size 2-3drops.

The speedy performance is amazing. Simply put a drop of a sample on the prism surface and press the START key. The result will be displayed in just 3 seconds.

High temperature samples can be measured.

Protection class of the PAL is IP65. You can rinse off the sample by running water over the sample stage. The design allows the user to easily wipe off the sample.

The sample stage is designed to keep sample solutions from spilling out. Calibration is with water only.

The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature.

Convenient Storage case.
