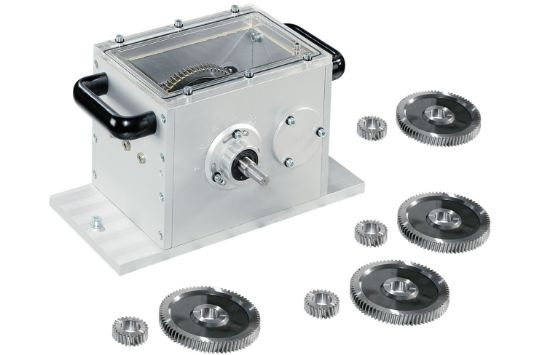

GUNT PT 500.15 - Damage to Gears Kit

The GUNT PT 500.15 - Damage to Gears Kit is designed to simulate and analyze common types of gear damage and their effects on vibration behaviour. It provides an in-depth understanding of how gear wear, misalignment, and lubrication influence machine vibration signals, helping students and technicians identify potential faults in rotating systems.

Product Features

  • Accessory setup for simulating typical gear damage and studying its vibration effects
  • Includes various gear sets with tooth damage and undamaged gear sets for comparison
  • Demonstrates differences between spur toothed and helical gearing
  • Adjustable bearing plates allow study of centre distance and backlash influence
  • Choice of grease or gear oil lubrication to assess effects on vibration signals
  • Housing features holes for sensor installation during vibration experiments
  • Transparent housing cover enables visual observation of gear operation
  • Requires PT 500.05 brake and load unit to apply load to the gear system
  • Mounted on the base plate of the machinery diagnostic base system PT 500
  • Requires PT 500.04 vibration analyser for measurement and evaluation
  • Includes sensors, measuring amplifier, and analysis software for recording vibration data

Benefits

  • Provides practical insight into the effects of gear damage on vibration behaviour
  • Helps develop diagnostic skills for identifying faults in gear systems
  • Enhances understanding of gear dynamics, alignment, and lubrication influence
  • Ideal for mechanical engineering education and machinery condition monitoring

Why Choose GUNT PT 500.15 - Damage to Gears Kit?

The GUNT PT 500.15 - Damage to Gears Kit offers a realistic and comprehensive approach to studying gear faults and vibration patterns, making it essential for training in mechanical diagnostics and maintenance.
