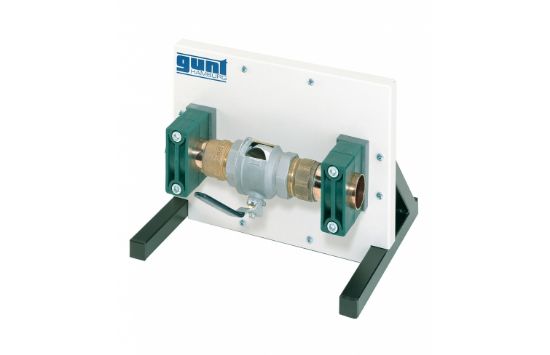

The GUNT HM 700.13 - Cutaway Model: Ball Valve features actual pipework components used in real installations, including valves, an orifice plate, measuring nozzle, shut-off fittings, safety valve, and pumps. The models are clearly arranged on display panels or base plates for easy observation. Each model includes a short description and a sectional view, making it ideal for technical drawing exercises and detailed study of ball valves and associated components.
Product Features
- Authentic pipework components including ball valve, orifice plate, measuring nozzle, shut-off fittings, safety valve, and pumps
- Clearly displayed on panels or base plates for easy viewing
- Includes short description and sectional view for each model
- Perfect for technical drawing exercises and component study
- Durable construction suitable for classroom and laboratory use
Benefits
- Provides hands-on understanding of ball valves and related pipework components
- Supports technical drawing and engineering education
- Sectional views enhance visualization of internal structures
- Clear display panels make learning engaging and effective
Why Choose GUNT HM 700.13 - Cutaway Model: Ball Valve?
The GUNT HM 700.13 - Cutaway Model: Ball Valve offers a practical and visual approach to studying ball valves and pipework components. Its sectional views, descriptive details, and clear display layout make it ideal for educational and technical training purposes.
