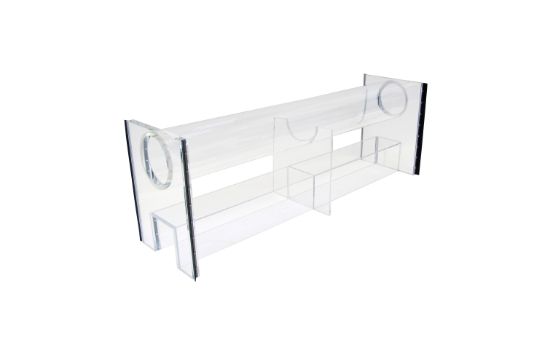

The GUNT Culvert HM 161.45 is designed for laboratory demonstrations of flow through crossing structures in open channels. It allows detailed observation of hydraulic phenomena such as partially filled flows, full flows, and hydraulic jumps.
Product Features
- Crossing structure in running water, allowing passage of water in flumes
- Can simulate partially filled culverts with free surface or full flow pipe conditions
- Combination of fully flowed and partially filled states possible, illustrating control structures
- Contains two different cross-sections with the same cross-sectional area for comparative study
- Transparent material allows close observation of flow behavior and hydraulic jumps
- Fixed in the experimental flume using a clamping device for stable operation
Benefits
- Demonstrates principles of culvert hydraulics, including flow regimes and hydraulic jumps
- Allows study of partially filled and full flow scenarios in a controlled environment
- Transparent design ensures visual observation for educational and laboratory purposes
- Durable construction suitable for repeated experiments in open-channel hydraulics
Why Choose GUNT Culvert?
The GUNT Culvert HM 161.45 provides a versatile and practical solution to study flow through crossing structures, flow regimes, and hydraulic jumps in laboratory and educational settings.
