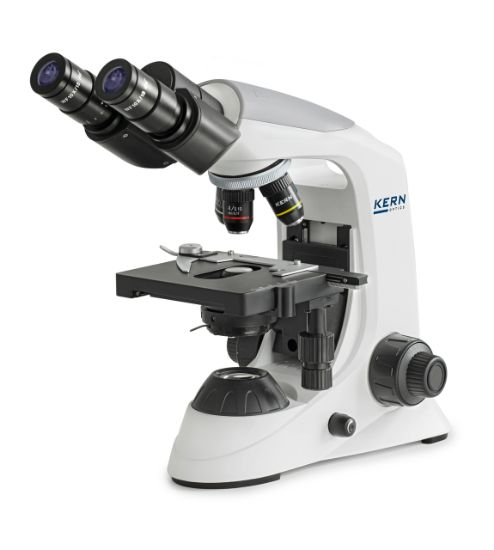

The Kern Compound Microscope Binocular Achromat 4/10/40, featuring a HWF 10×18 eyepiece and 3W LED transmitted illumination, combines robust construction, ergonomic design, USB power compatibility, and bright, adjustable lighting—ideal for training, haematology, and clinical use.
Product Features
- Eyepiece: HWF 10× Ø 18.0 mm wide field of view
- Objectives: 4×, 10×, 40× achromatic lenses mounted on a 4-fold revolving nosepiece
- Illumination: Infinitely dimmable 3W LED (transmitted light)
- Tube: Binocular with integrated butterfly 30° lens barrel for ergonomic viewing angle
- Height-adjustable and focusable 1.25 Abbe condenser with aperture diaphragm
- Fully equipped mechanical stage with coaxial coarse and fine focus on both sides
- Ergonomic coaxial stage drive for smooth, rapid sample movement
- Cable storage compartment and USB power via external powerbank
- Large selection of optional eyepieces and objectives available
- Includes protective dust cover, eye cups, and multilingual instructions
- C-mount adapter required for camera connection (trinocular only)
Scope of Application
Ideal for training, haematology, sediment investigation, and medical doctor’s surgeries.
Applications / Samples
Designed for translucent, thin, high-contrast, less complex samples such as plant tissue, coloured cells, and parasites.
Technical Data
- Optical system: Finite (DIN standard)
- 4-fold revolving lens unit
- Butterfly 30° lens barrel
- Dioptre compensation (one-sided) available for binocular and trinocular models
- Overall dimensions (W×D×H): 360 × 150 × 320 mm
- Net weight: approx. 4.5 kg
Benefits
- Bright, clear illumination with infinitely adjustable 3W LED for excellent sample visibility
- Ergonomic butterfly lens and coaxial stage drive minimize user fatigue and improve efficiency
- Compact, durable construction ideal for classroom, laboratory, or clinical environments
- USB power option enables flexible, mobile operation
- Wide selection of optional eyepieces and objectives to customize your microscope
- Comes with all necessary accessories including dust cover and eye cups for protection and comfort
Why Choose the Kern Compound Microscope Binocular Achromat 4/10/40?
The Kern Compound Microscope Binocular Achromat 4/10/40 offers reliable, precise optics with ergonomic features tailored for education and clinical use. Its sturdy construction, flexible power options, and user-friendly design make it an excellent choice for examining a variety of samples such as plant tissue and coloured cells. Backed by Kern’s commitment to quality, it ensures consistent and accurate results in demanding environments.
