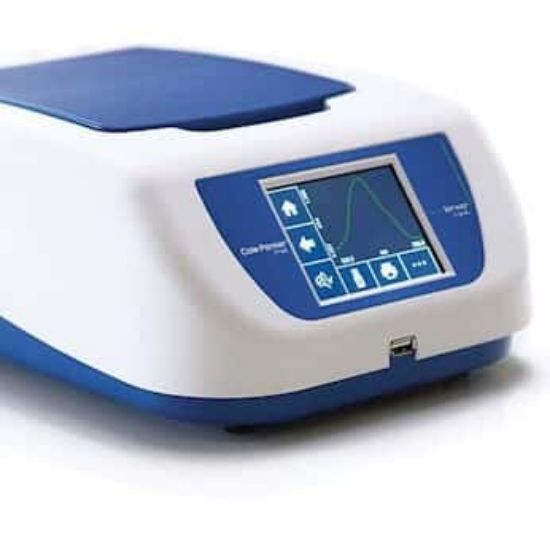

The Cole-Parmer SP-400-VIS Diode Array Spectrophotometer (83056-01) is a visible scanning spectrophotometer for fast spectral measurement across 335 to 800 nm. It uses diode array technology, a colour touchscreen interface and multiple measurement modes for education, quality control, clinical, veterinary and pharmaceutical laboratory workflows.
Key Features
- Visible diode array scanning, covering a wavelength range of 335 to 800 nm
- 7 nm spectral bandwidth, suitable for routine visible spectrophotometry applications
- Fast full-spectrum scanning, completing scans across the selected range in less than 6 seconds at 1 nm resolution
- Multiple measurement modes, including absorbance, % transmittance, concentration, OD600, quantitation, spectrum scanning and kinetics
- Quantitation curve capability, using up to 6 standards with the option to measure each standard up to 3 times
- Kinetics measurement support, measuring change in absorbance over time at up to 3 wavelengths simultaneously
- Colour touchscreen navigation, with a 4 inch display for viewing scans, curves and kinetics runs
- Diode array data capture, recording absorbance across the wavelength range so results can be reviewed without repeating the measurement
- Lid-open measurement capability, using reversed optics to reduce the effect of ambient stray light during suitable measurements
- Flexible USB connectivity, with front USB storage and rear USB printer connection
- Compact bench footprint, measuring 21.2 x 12.0 x 42.2 cm and weighing 2.8 kg
- Rebranded Cole-Parmer model, replacing the Jenway 7200 visible diode array spectrophotometer with the SP-400-VIS model name
Note: Includes a 10 x 10 mm cuvette holder, USB memory stick and power adapter with US, Euro and UK plugs.
Benefits
- Improves productivity by acquiring full spectral data quickly across the visible wavelength range.
- Reduces repeat measurements by retaining spectrum data for later review and wavelength adjustment.
- Simplifies routine operation with touchscreen navigation, visible graphs and easy access to saved curves.
- Supports varied laboratory methods through photometrics, concentration, quantitation, OD600, spectrum and kinetics modes.
- Saves bench space while still offering a large sample chamber and accessory compatibility for different sample formats.
- Helps teams replacing Jenway 7200 instruments identify the current Cole-Parmer SP-400-VIS model.
Why Choose the Cole-Parmer SP-400-VIS Diode Array Spectrophotometer 83056-01?
The Cole-Parmer SP-400-VIS Diode Array Spectrophotometer 83056-01 is a compact visible spectrophotometer for labs that need fast scanning, clear touchscreen control and flexible data handling. John Morris Group supplies Cole-Parmer spectrophotometers for Australian laboratories requiring reliable visible-range analysis and practical workflow support.
