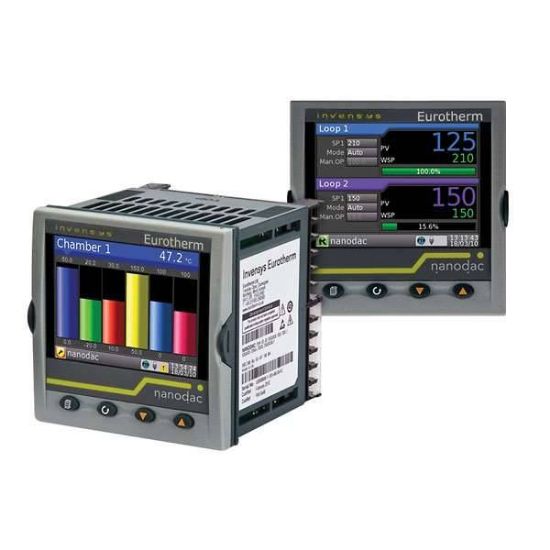

Cole-Parmer Nanodac paperless recorder features secure data recording, graphical display, and optional PID control — all in a compact 1/4 DIN panel-mount design. Full-color 3.5” TFT provides a crystal-clear operator interface for monitoring and process control. View process information with horizontal and vertical trends, bar graphs, or numeric values, and easily display alarm status and control loops. Four front-panel push buttons allow simple scrolling between configured views.
Product Features
- Highly accurate process measurements with high noise rejection
- Option of two independent PID control loops
- Secure binary (UHH) or open (CSV) data files
- 4 universal input channels with 125 ms parallel sampling
- 14 additional channels for math functions, totalizers, or counters
- 8 Hz sample and recording rate
- High-density I/O
- USB and Ethernet ports
- Simple configuration via push buttons or iTools software
- Crystal-clear, full-color display
- Space-saving 1/4 DIN panel-mount design
- 50 MB nonvolatile Flash memory for continuous data logging
- Multiple archive strategies including database, USB, and FTP for backup
- PC-based iTools software for chart review, printing, export, and offline configuration
- Encrypted data in binary (UHH) files, network-configurable
- Autotune facility with overshoot inhibition (cutbacks) and power feedforward compensation
- Supports linear, fan, oil, and water cooling control
- Optional carbon zirconia block for percentage carbon control in furnace atmospheres
- Optional sterilizer block for desktop sterilizers integrated with PLC systems
Note: See model numbers 70001-27 through 70002-43 for optional sterilizer or humidity block.
Benefits
- Reliable and precise process monitoring in various industrial environments
- Secure and flexible data recording with multiple backup options
- Supports advanced PID control for accurate process management
- Easy configuration and software integration saves setup time
- Compact design suitable for tight panel space
- Customizable control and monitoring with optional blocks for carbon and sterilizer processes
Why Choose Cole-Parmer Nanodac?
The Nanodac recorder/controller provides a comprehensive solution for process monitoring and control with clear visualization, secure data logging, and flexible configuration. Its compact design and optional control loops make it ideal for industrial applications requiring precision, reliability, and efficiency.
