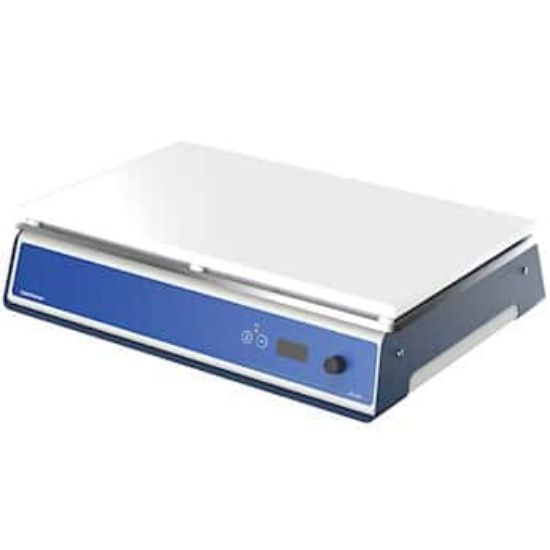

The Cole-Parmer HP-200D-XL-C Digital Hot Plate, Ceramic, 30 x 50 cm, 230 VAC (04807-70) is a large-capacity digital laboratory hot plate designed for accurate plate temperature setting and control. It features a 30 x 50 cm glass ceramic top plate, 25 x 45 cm heated area, 375 °C maximum plate temperature and 230 VAC, 50/60 Hz operation.
Key Features:
- Brand: Cole-Parmer
- Product Type: Large-capacity digital hot plate
- Part Number: 04807-70
- Cole-Parmer Item Number: 0480770
- Model: HP-200D-XL-C
- Legacy SKU: CB500
- Top Plate Material: Glass ceramic
- Plate Dimensions: 30 x 50 cm
- Heated Area: 25 x 45 cm
- Maximum Plate Temperature: 375 °C
- Heater Power: 2250 W
- Power Supply: 230 VAC, 50/60 Hz
- Control Type: Digital plate temperature setting and control
- Temperature Control: Microprocessor-controlled dual thermocouples
- Safety Indicator: Hot warning light remains active when switched off, while connected to mains power
- Ingress Protection: IP20
- Dimensions: 56 x 13 x 36 cm
- Net Weight: 12 kg
- Included Items: Power cord
Note: The ceramic 30 x 50 cm plate can accommodate up to 30 x 100 mL beakers. The hot warning light remains active when the unit is switched off only while it is still connected to mains power.
Benefits:
- Provides accurate digital plate temperature setting and control for demanding laboratory heating tasks.
- Large 30 x 50 cm plate supports one large vessel or several smaller vessels at the same time.
- Glass ceramic surface provides chemical resistance, high plate temperature capability and easier cleaning.
- Microprocessor-controlled dual thermocouples support accurate temperature control and over-temperature protection.
- Hot warning light helps alert operators when the plate remains hot after use.
- Stable housing design helps deflect spills away from the user and protects internal electronics against corrosion.
Why Choose The Cole-Parmer HP-200D-XL-C Digital Hot Plate, Ceramic, 30 x 50 cm, 230 VAC (04807-70)?
The Cole-Parmer HP-200D-XL-C Digital Hot Plate, Ceramic, 30 x 50 cm, 230 VAC (04807-70) is suited to laboratories that need a large, chemically resistant heating surface with accurate digital control. John Morris Group supplies Cole-Parmer hot plates and laboratory heating equipment for research, education, quality control and routine laboratory workflows across Australia.
