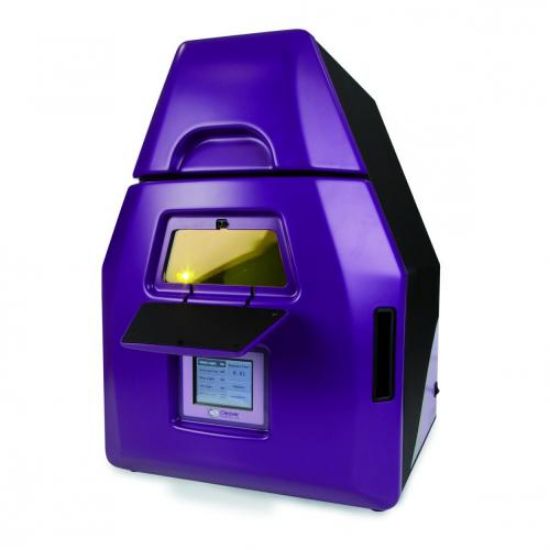

Cleaver Scientific Gel Documentation System omniDOC provides high-performance gel documentation and analysis at a relatively low cost. With a high-resolution 5 megapixel camera, slide-out UV transilluminator, and optional blue epi-illumination module and white light table, the omniDOC is suitable for imaging most fluorescent and colorimetric gels.
Product Features
- Pre-focused 5 megapixel camera with auto-exposure for almost instantaneous high-resolution gel imaging; CMOS sensor for improved light sensitivity
- 6 mm lens, F1.2 aperture size, with manual adjustment
- Interchangeable 4-position filter wheel with 620 nm ethidium bromide filter as standard; 520, 560, 580 nm and neutral density filter options available for runSAFE, SYBR stain, and other fluorescence applications
- Viewing pane with universal amber filter for gel inspection, which may be covered by a spring-loaded panel during documentation
- Internal white LED for gel positioning and focusing
- Slide-out 312 nm transilluminator; uses optional plug-in white light table for coomassie, silver-stain, and other colorimetric gels
- Large 210 x 260 mm filter area
- Dark room assembly with corrosion-resistant ABS construction
- Safety switch prevents accidental UV exposure when opening front door panel
- Optional omniDOCSAFE: Blue LED epi-illumination and 520, 560, 580 nm and neutral density filters
- Optional omniDOCPROSAFE: Blue LED epi-illumination, 520, 560, 580 nm and neutral density filters, and white light table
Benefits
- High-resolution imaging for precise gel analysis
- Flexible filter options for various fluorescence applications
- Safe and ergonomic design with UV protection and easy access
- Optional epi-illumination and white light table for versatile gel imaging
Why Choose Cleaver Scientific omniDOC?
The omniDOC system combines affordability, performance, and safety, making it an excellent choice for laboratories performing fluorescent and colorimetric gel documentation.
