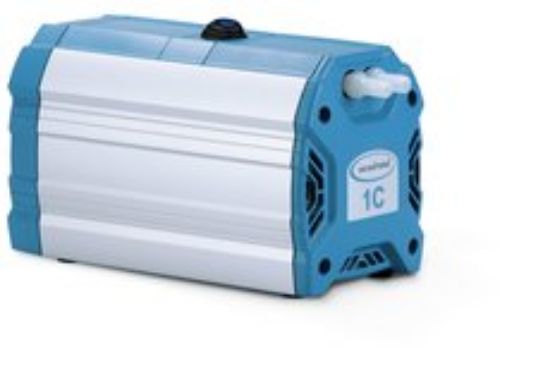

ME 1C is the oil-free diaphragm pump which provides a well-proven and extraordinarily long diaphragm life time. Robust PTFE diaphragms and valves provide optimal chemical resistance.
Performance features
- convenient, quick and simple to use due to the new top-mounted power switch
- whisper quiet and very low vibration
- requires minimal benchtop space
- maintenance-free drive system and proven long diaphragm life
- high chemical resistance
Max. pumping speed at 50/60 Hzm3/h: 0.7 / 0.85
Max. pumping speed at 50/60 Hzcfm: 0.4 / 0.5
Ultimate vacuum (abs.)mbar/torr: 100 / 75
Ambient temperature range (operation)°C: 10 - 40
Ambient temperature range (storage)°C: -10 - 60
Max. back pressure (abs.)bar: 1.1
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Rated motor powerkW: 0.04
