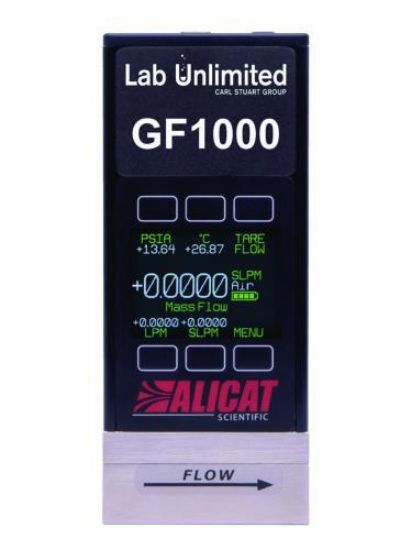

The Carl Stuart Limited GF1000 Gas Flowmeter Kit is a robust, portable device designed for measuring the flow rate of gas chromatographs and calibrating air sampling canisters. Real-time measurement of flow and pressure improves validation efficiency and reduces instrument downtime.
Product Features
- Real-time measurement of more than 30 common gases over a wide range
- Check volume flow, mass flow, pressure, and temperature at the inlet and detector outlet of the GC
- Flow calibration with NIST-traceable accuracy
- Immediately ready for use after switching on; measurement completed within 20 seconds
- Fast response time of 10 ms
- TFT display for clear readings
- RS232 interface for data transfer
- 18 hours battery life
Scope of Supply
- GC flow meter
- Hard-shell carrying case
- Spare tubings and tubing connector fittings
- Power supply with adapters for EU, UK, CH, and US
Specifications
- Range: 0.1 ... 1000 ml/min
- Accuracy: ±0.8 % of reading, 0.2 % of full scale
- Resolution: 0.1 ml/min
- Turn-down Ratio: 200:1
- Operating temperature: -10 ... 60 °C
- Inlet pressure: max. 1000 kPa (145 psi)
- Dimensions: 60 x 170 x 24 mm
- Weight: 450 g
Benefits
- Accurate and NIST-traceable flow measurement
- Portable and easy to operate in the field or lab
- Real-time readings save time and improve validation efficiency
- Robust design ensures long-term reliability and minimal downtime
Why Choose Carl Stuart Limited GF1000 Gas Flowmeter Kit?
This kit provides a reliable, precise, and portable solution for gas chromatography flow measurement and calibration, enhancing laboratory efficiency and accuracy.
