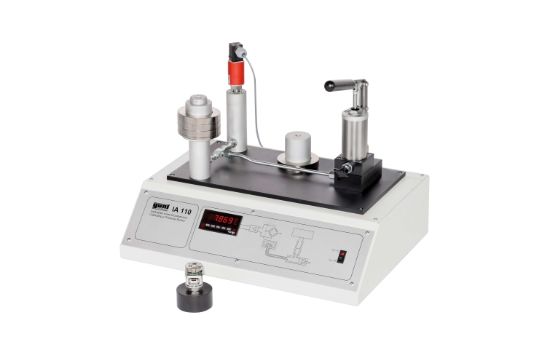

The GUNT Pressure Sensor Calibration Unit provides a practical setup to calibrate electronic pressure sensors under realistic laboratory conditions.
Product Features
- Test pressure generated using a conventional piston manometer loaded with weight rings to create a defined pressure p = FG/AP
- Hand-operated spindle used to relieve pressure after measurement, allowing the piston to return to rest position
- Friction influence minimized by rotating the piston during measurement for accurate results
- Generated test pressure applied to the diaphragm of the pressure sensor under calibration
- Pressure-dependent electrical output displayed digitally for easy reading
- Uses a state-of-the-art ceramic measuring cell with strain-dependent piezo resistors mounted on a ceramic diaphragm
- Piezo resistors configured as a measuring bridge, with integrated amplifier circuit outputting proportional voltage signal
- Includes a second pressure sensor cutaway model for enhanced clarity and understanding
- Compact and easy-to-handle housing suitable for laboratory and educational use
Benefits
- Accurate and reproducible calibration of electronic pressure sensors
- Hands-on learning with visual cutaway model of pressure sensor technology
- Minimized measurement error through friction reduction techniques
- Compact design for convenient handling and setup
- Clear digital output for precise measurement readings
Why Choose the GUNT Pressure Sensor Calibration Unit?
This unit offers a complete solution for calibrating pressure sensors practically and accurately. Ideal for education and research, it combines mechanical precision with advanced sensor technology and clear visualization tools.
