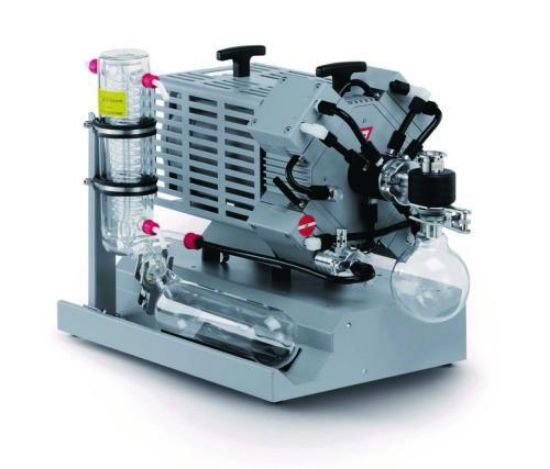

The Vacuubrand ATEX Chemical Vacuum System MD 4C EX+AK+EK three-stage, 230V 50Hz is designed for demanding chemical applications, especially in potentially explosive atmospheres. ATEX-compliant, it offers oil-free vacuum performance with excellent chemical resistance and vapor tolerance.
Product Features
- ATEX chemistry diaphragm vacuum system for rotary evaporators, drying ovens, and other chemical processes
- Outstanding chemical resistance and superior vapor tolerance
- Mainly made of antistatic materials
- Flame-proof motor with integrated, self-locking overload and excess temperature protection
- Overpressure safety relief valves internally and at outlet
- Separate gas ballast connection for use of inert gas
- Safety diaphragm technology with optional inert gas purge and diaphragm breakage detection
- Three-stage design for enhanced vacuum performance
Specifications
- Vacuum inlet: Small flange KF DN 16
- Pressure outlet: Tubing nozzle DN 8-10 mm
- Cooling water connection: 2 x tubing nozzle DN 6-8 mm
- ATEX compliance – Pump chamber (pumped gases): II 2G IIC T3 X
- ATEX compliance – Exterior space (pump environment): II 2G IIB T4 X (with inert gas purging) / II 3G IIB T4 X (without inert gas purging)
Benefits
- Safe operation in potentially explosive chemical environments
- Durable and chemical-resistant construction
- Oil-free operation reduces maintenance and contamination risks
Why Choose Vacuubrand ATEX MD 4C EX+AK+EK?
This three-stage ATEX-compliant diaphragm vacuum system ensures reliable, oil-free vacuum performance for chemical processes, combining safety, chemical resistance, and superior vapor handling in one compact unit.
