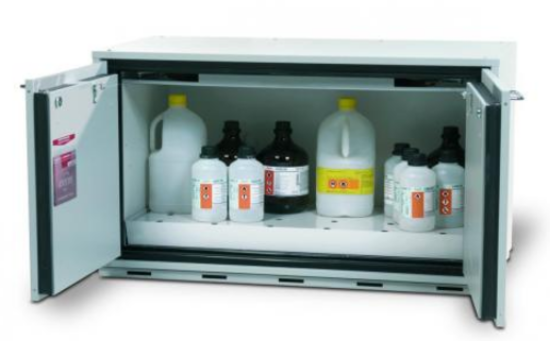

The Asecos Safety Base Cupboard Type 90 is designed for the safe and approved storage of hazardous materials directly in workrooms. Certified to DIN EN 14470-1 with 90 minutes of fire resistance, it provides robust safety, convenient handling, and mobility for laboratory and industrial environments.
Product Features
- Safe and approved storage of hazardous materials in workrooms
- Type tested according to DIN EN 14470-1, fire resistance 90 minutes
- GS approved and CE conformal
- Mobile design with integrated castors and plinth for easy movement
- Integrated air ducts (NW 50) for connection to an exhaust system
- 135° wing door opening for full container access
- Doors and drawer remain open in any position for convenience
- Drawer equipped with earthing wire and welded sump
- Self-closing doors and drawer in case of fire
- Lockable doors and drawer with cylinder locking and red/green indicator
Specifications
Outer dimensions (W x D x H):
UB90.060.059.S / UB90.060.059.T: 593 x 574 x 600 mm
UB90.060.110.S / UB90.060.110.2T: 1102 x 574 x 600 mm
Inner dimensions (W x D x H):
UB90.060.059.S / UB90.060.059.T: 470 x 450 x 500 mm
UB90.060.110.S / UB90.060.110.2T: 980 x 450 x 500 mm
Sump (W x D x H):
UB90.060.059.S: 422 x 441 x 80 mm
UB90.060.110.S: 930 x 441 x 80 mm
Scope of Delivery
Models UB90.060.059.S and UB90.060.110.S include drawer with sump and perforated insert.
Model UB90.060.059.T includes bottom collecting sump and perforated insert as a storage level.
Further cabinet versions available on request.
Benefits
- Fire-resistant storage with 90-minute protection
- Optimized access and convenience with wide door openings
- Enhanced mobility for flexible use
- Secure, lockable design prevents unauthorized access
- Compliant with international safety standards
Why Choose Asecos Safety Base Cupboard Type 90?
The asecos Safety Base Cupboard Type 90 combines fire resistance, mobility, and safety-certified design, making it the ideal choice for laboratories and industrial environments requiring compliant and reliable hazardous material storage.
