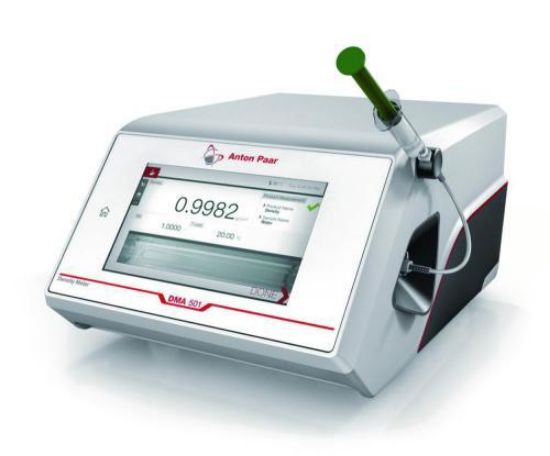

The Anton Paar DMA 501 Digital Laboratory Density Meter is designed for precise measurement of chemicals, pharmaceuticals, cosmetics, and food products. Ideal for challenging samples such as pastes, inhomogeneous mixtures, sedimenting particles, or aerosol sprays, the DMA 501 ensures reliable density measurements in any laboratory environment.
Product Features
- Density measuring range 0 ... 3 g/cm³ with 0.001 g/cm³ accuracy
- Automatic detection of filling errors using FillingCheck function with camera image of measuring cell (U-view)
- Splash-proof front panel for safe laboratory operation
- Fanless temperature control for sample stability
- User-defined display layouts with customizable result outputs
- Documentation and traceability of measurement data
- Standardized sample handling eliminates external influences
- Integrated temperature, humidity, and pressure sensors for accurate measurements
- Automatic full-range viscosity correction
- 3-year warranty
Specifications
- Density measuring range / Accuracy: 0 ... 3 g/cm³ / 0.001 g/cm³
- Reproducibility standard deviation (ISO 5725): 0.0004 g/cm³
- Minimal sample volume: approx. 1 ml
- Temperature range / Accuracy: 15 ... 40 °C / ±0.3 °C
- Display: 7-inch TFT WVGA (800 x 480 px), PCAP touchscreen
- Interfaces: 1 x Ethernet, 3 x USB, 1 x RS-232
- Dimensions (W x D x H): 265 x 375 x 180 mm
- Weight: 13.5 kg
- Power supply: 100 – 240 V, 47/63 Hz, 24 V, 3 A
Benefits
- Reliable measurement of complex and inhomogeneous samples
- Accurate density readings with minimal sample volume
- Enhanced safety with splash-proof design
- Full data traceability for quality assurance
- Customizable user interface for laboratory efficiency
Why Choose Anton Paar Digital Laboratory Density Meter DMA 501?
The DMA 501 provides precise, reliable, and safe density measurements for a wide range of sample types. Its advanced features and integrated sensors ensure reproducibility, making it a versatile tool for laboratories in research, quality control, and industrial applications.
