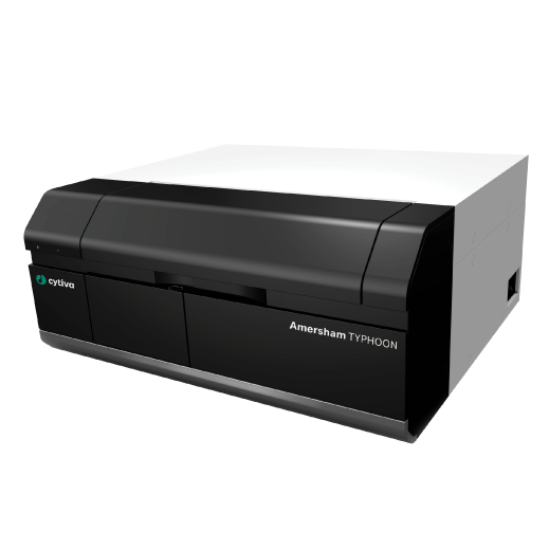

The Amersham Typhoon RGB Biomolecular Imager (29187193) is a variable-mode laser scanner for sensitive and quantitative imaging of proteins, nucleic acids and other biomolecules. It supports RGB fluorescence, phosphor imaging, optical densitometry and chemiluminescence dark scan workflows, with a 40 x 46 cm scan area and selectable pixel sizes down to 10 µm.
Key Features
- Multi-mode RGB imaging configuration, supporting fluorescence, phosphor imaging, densitometry and chemiluminescence dark scan in the Typhoon RGB model
- Broad quantitative range, with measurable dynamic range greater than five orders of magnitude for sensitive analysis
- High-resolution laser scanning, with selectable 10, 25, 50, 100 and 200 µm pixel sizes plus prescan at 1000 µm
- Large sample scan area, covering 40 x 46 cm for high-throughput gel, blot and plate imaging
- Visible laser excitation set, configured with LD488, SHG532 and LD635 excitation wavelengths
- Flexible filter handling, with automatic filter recognition and support for exchangeable emission filters
- RGB fluorescence filter set, including Cy2, Cy3 and Cy5 standard filters for common visible fluorescence workflows
- Phosphor imaging capability, supporting radioisotope-labelled samples with the IP 390BP filter and IP stage
- Multiple sample stage support, with Fluor Stage, Multi-Stage and IP Stage workflow support
- ImageQuant TL analysis included, with one software licence supplied with each Amersham Typhoon scanner model
- Laboratory-ready electrical specification, operating from 100 to 240 VAC ± 10% at 50/60 Hz
Note: Additional filters, holders, stages, upgrade kits and accessories are available separately where required.
Benefits
- Supports quantitative imaging across gels, blots, membranes, plates, glass slides, culture dishes and tissue sections.
- Helps reduce repeat scans by accommodating larger sample layouts in a single imaging run.
- Allows RGB fluorescence, phosphor imaging and densitometry workflows to be handled on one platform.
- Improves consistency in shared laboratories through automatic filter recognition and guided scan setup.
- Provides flexibility for evolving research needs through modular filters, stages, detectors, lasers and upgrade options.
- Enables downstream analysis with the supplied ImageQuant TL software licence.
Why Choose the Amersham Typhoon RGB Biomolecular Imager (29187193)?
Choose the Amersham Typhoon RGB Biomolecular Imager (29187193) for a high-performance Cytiva laser scanner configured for visible fluorescence, phosphor imaging, densitometry and chemiluminescence dark scan applications. John Morris Group supplies Cytiva imaging systems for Australian laboratories that need sensitive biomolecular imaging, flexible configuration and reliable local support.
