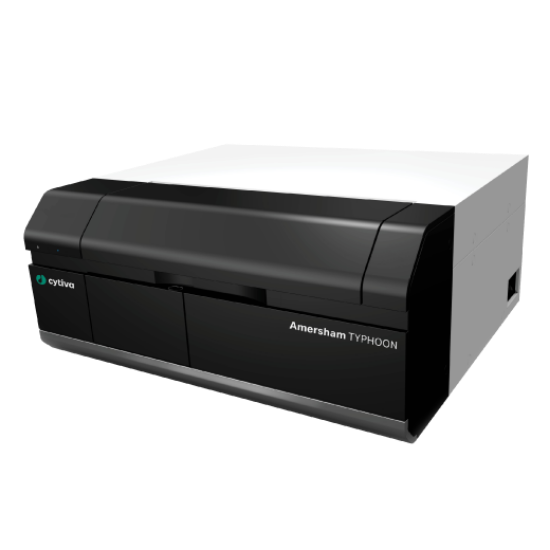

The Amersham Typhoon NIR Biomolecular Imager (29238583) is a variable-mode laser scanner configured for near-infrared fluorescence imaging of biomolecules. It supports 2xNIR fluorescence detection with LD685 and LD785 laser excitation, a 40 x 46 cm scanning area and selectable pixel sizes down to 10 µm.
Key Features
- Dedicated 2xNIR fluorescence configuration, supporting near-infrared imaging workflows with the Amersham Typhoon NIR model
- Dual near-infrared excitation, with LD685 and LD785 laser excitation wavelengths
- Broad quantitative range, with measurable dynamic range greater than five orders of magnitude
- High-resolution laser scanning, with selectable 10, 25, 50, 100 and 200 µm pixel sizes plus prescan at 1000 µm
- Large sample scan area, covering 40 x 46 cm for high-throughput biomolecular imaging
- Near-infrared filter set, including IRshort 720BP20 and IRlong 825BP30 standard filters
- Fluor Stage sample handling, supporting fluorescence imaging workflows on the Typhoon platform
- Automatic filter recognition, helping update the control software when filters are changed
- Upgradeable system pathway, with options listed for adding blue fluorescent, IP, NIR Plus or RGB fluorescent functions
- ImageQuant TL analysis included, with one software licence supplied with each Amersham Typhoon scanner model
- Laboratory-ready electrical specification, operating from 100 to 240 VAC ± 10% at 50/60 Hz
Note: Additional filters, stages, holders, upgrade kits and accessories are available separately where required.
Benefits
- Supports near-infrared fluorescence imaging for biomolecular workflows such as NIR fluorescent Western blotting.
- Helps quantify low and high abundance targets in the same scan through high sensitivity and broad dynamic range.
- Allows large-format sample imaging to reduce repeated scans and improve laboratory throughput.
- Provides flexibility for evolving research needs through listed upgrade pathways for added imaging functions.
- Improves shared-laboratory usability with automatic filter recognition and removable stage handling.
- Enables downstream image analysis with the supplied ImageQuant TL software licence.
Why Choose the Amersham Typhoon NIR Biomolecular Imager (29238583)?
Choose the Amersham Typhoon NIR Biomolecular Imager (29238583) for a Cytiva laser scanner focused on near-infrared fluorescence imaging with LD685 and LD785 excitation. John Morris Group supplies Cytiva imaging systems for Australian laboratories that need sensitive biomolecular imaging, flexible configuration and reliable local support.
