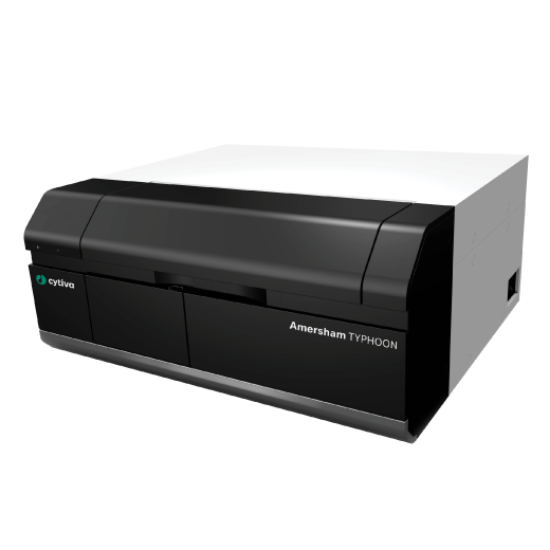

Amersham Typhoon IP Biomolecular Imager (29187194) is a high-performance laser scanner configured for phosphor imaging of radiolabelled biomolecules. It combines a 35 x 43 cm scanning area, 16-bit imaging, selectable pixel sizes down to 10 µm and a measurable dynamic range greater than five orders of magnitude for sensitive quantitative imaging.
Key Features
- Dedicated phosphor imaging configuration, designed for radiolabelled DNA, RNA and other biomolecule detection workflows
- LD635 laser excitation, with the standard laser configuration verified for the Typhoon IP model
- Expansion pathways for additional excitation wavelengths, with optional LD488, SHG532, LD685 and LD785 configurations listed for the IP model
- Broad measurable dynamic range, supporting quantitation across more than five orders of magnitude
- Fine selectable pixel sizes, including 10, 25, 50, 100 and 200 µm settings for flexible scan resolution
- 16-bit image depth, supporting detailed signal capture for quantitative molecular imaging
- Large 35 x 43 cm scanning area, providing space for larger phosphor imaging plates and sample formats
- IP 390BP standard filter, matched to the phosphor imaging configuration
- IP Stage sample handling, supplied as the sample stage for the Typhoon IP model
- Bench-compatible instrument footprint, with verified dimensions of 900 x 400 x 800 mm and a 92 kg system weight
- Controlled laboratory operating range, specified for 18 °C to 28 °C and 20% to 70% RH with no condensation
Benefits
- Supports sensitive radioactive detection workflows while retaining the flexibility of a modular Typhoon scanner platform.
- Allows users to choose pixel size settings to balance fine detail, sample type and throughput needs.
- Helps improve quantitative confidence with 16-bit imaging and a broad measurable dynamic range.
- Accommodates larger phosphor imaging formats with a 35 x 43 cm scanning area.
- Provides a clear upgrade path where additional excitation capabilities are required later.
- Includes one ImageQuant TL software licence to support downstream image analysis workflows.
Why Choose the Amersham Typhoon IP Biomolecular Imager (29187194)?
The Amersham Typhoon IP Biomolecular Imager (29187194) is suited to laboratories that need a dedicated phosphor imaging scanner with verified Cytiva specifications, strong quantitative performance and scalable upgrade options. John Morris Group supplies the Typhoon IP for Australian laboratories requiring sensitive molecular imaging capability with local product support.
